Ultra-large format 80cm width industrial-grade DTF printer, equipped with multi-row high-precision printheads, supporting high-speed large-format printing. Perfect for industrial mass production of super-wide format garment and textile printing.
Keditec 80 DTF printer
Keditec 80 DTF Printer for Large Format Textile Printing and High-Volume Garment Production.
Configuration
- Product model : K8 – DTF 80
- Print head : Epson i3200-A1
- Number of print heads : 8
- Max print size : ≤ 810 mm
- Ink colors : 5/9 ( C,M,Y,K+W / C,M,Y,K+W+R,G,B,O or LC,LM,LK.LLK)
- Ink type : Keditec DT-201 / 202 ink
- Anti sedimentation system : White ink filtration & circulation system
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
Rich colors
5/9
Maximum print width
810mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Red
Green
Blue
Orange
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 2515 mm
- Width : 801 mm
- Height : 1550 mm
Packing size
- Length : 2605 mm
- Width : 930 mm
- Height : 1450 mm
Print resolution / Speed / dpi
- 4 pass: 56.5 m²/h ( 360×3600dpi )
- 6 pass: 36.5 m²/h(720×2400dpi)
Work environment
- Temperature: 20 – 30 ° C
- Humidity: 45 – 70%
RIP software
- Maintop
- CADlink
- Flexi
- ONYX
- more…
Power / Voltage
- 350W AC220V+/-5%, 16A, 50/60 HZ
Heating method
- preheater heating
- Printing bed heater heating
- After discharge heating
Print head
- Model：I3200-A1
- Ink Types：Water based ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 6pl ( 43.2kHZ )
- 3 gray release: 6.3 , 12.3 pl 21.6kHZ
- 4 gray release: 3.8,6.1,9.4 pl ( 21.6kHZ )
- Viscosity range: 3~4 mPa･s
Simple operation
Details
Provides print head heating function
Maglev Guideway Design

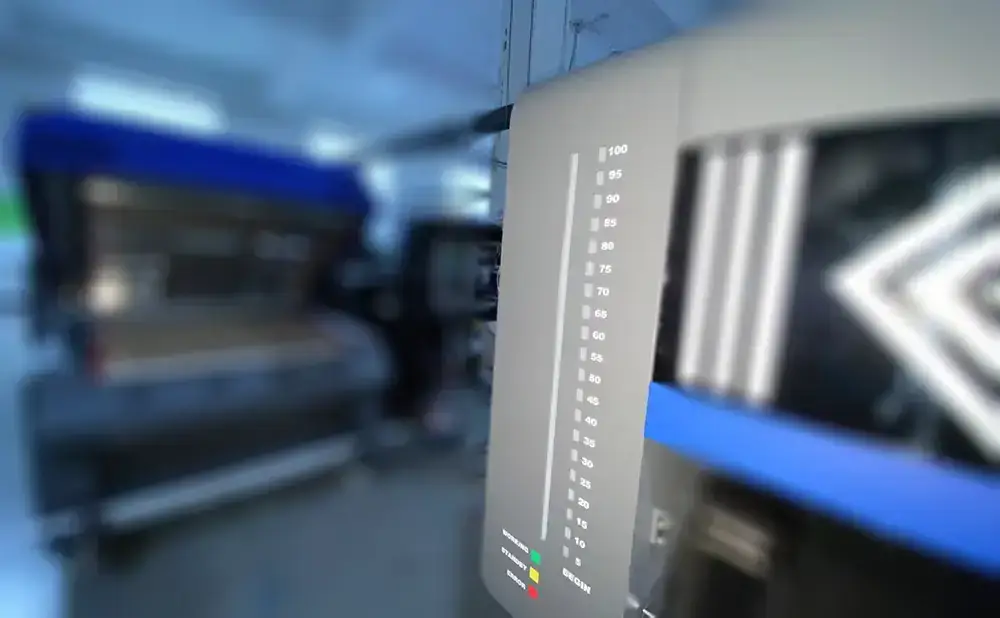

Visual print progress display
Receiving and discharging system

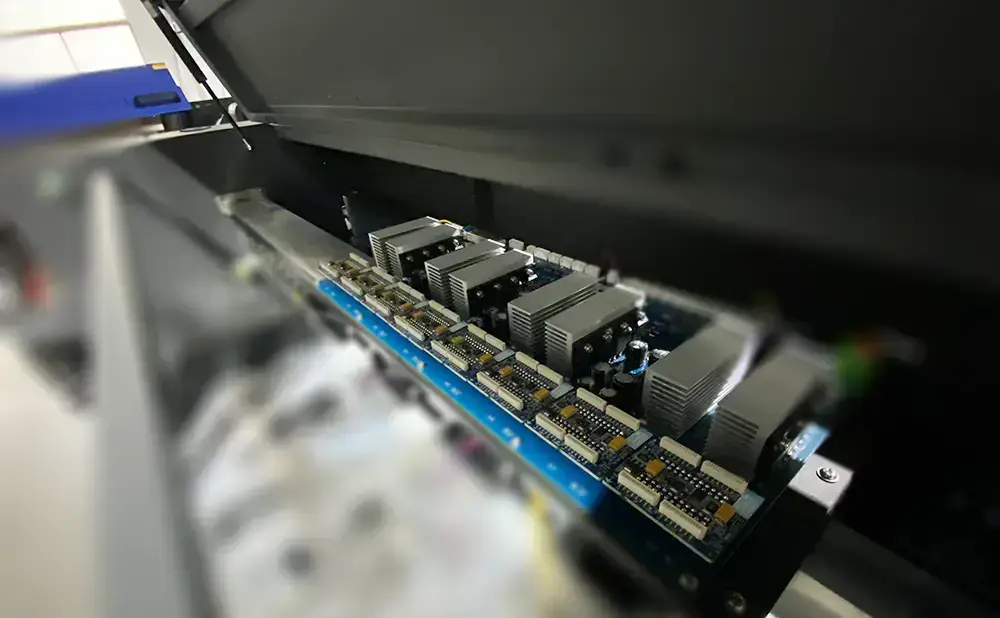

Standard central control microcomputer
3M filter
Use with powder shaker
Keditec 80 DTF powder shaker
Application
Learn more
FAQs
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
How is your quality control?
We have a professional quality control team that performs 100% testing before delivery.
How can I get a fast and accurate quote?
Please select the product you are interested in on our official website’s product page and leave your email address, mobile phone number, company name and information about various product specifications.
How can I order a machine from you?
After you confirm the order details, we will send you a pro forma invoice for confirmation. Upon receiving the payment, we will arrange production. We will inform you of the shipping method, and the final product will be dispatched within the agreed time.
Can we become the exclusive distributor of your machine?
We look forward to working closely with you. After you have ordered multiple machines and can provide high-quality after-sales service, we can start discussing the distribution relationship.
What is the warranty for your machines?
Our machines come with a one-year warranty excluding the print head. During the warranty period, we will send some replacement parts free of charge. Damaged parts should be returned promptly.
