Compact 30cm width desktop UV-DTF printer, equipped with high-precision UV printheads, supporting CMYK+W+Varnish 6-color printing. Perfect for printing crystal labels, stickers, and various hard surface transfer products.
30 UV-DTF printer
Keditec 30 UV DTF Printer for Crystal Label Printing and High Adhesion UV Transfer Applications.
Configuration
- Product model : K30 UV-DTF
- Print head : EPSON i1600-U1 or i3200-U1
- Number of print heads : 2
- Max print size : ≤ 310mm
- Printing resolution : Maximum 2400dpi
- Ink colors : 6 Colors ( CMYK+W+Varnish )
- Ink type : Keditec UV ink
- Ink supply method : Siphon, positive pressure ink bag
- Max printing speed : 8 Pass : 5 m²/h
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- 3 print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Unlimited creativity
Stick it casually with printing
Stable & secure
Stable operation after long-term testing
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Varnish
Red
Green
Blue
Orange

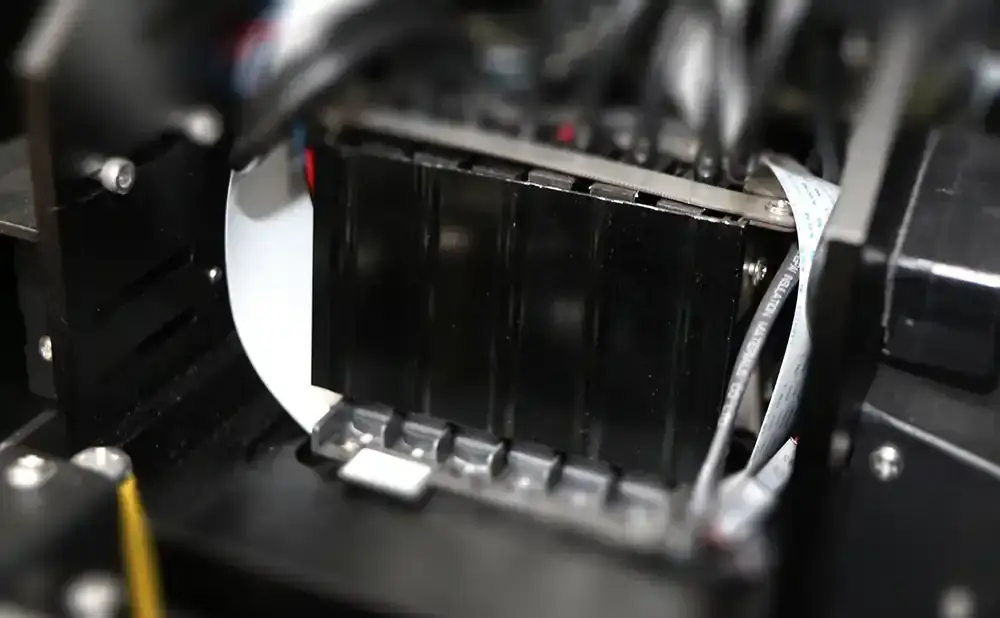

Print head

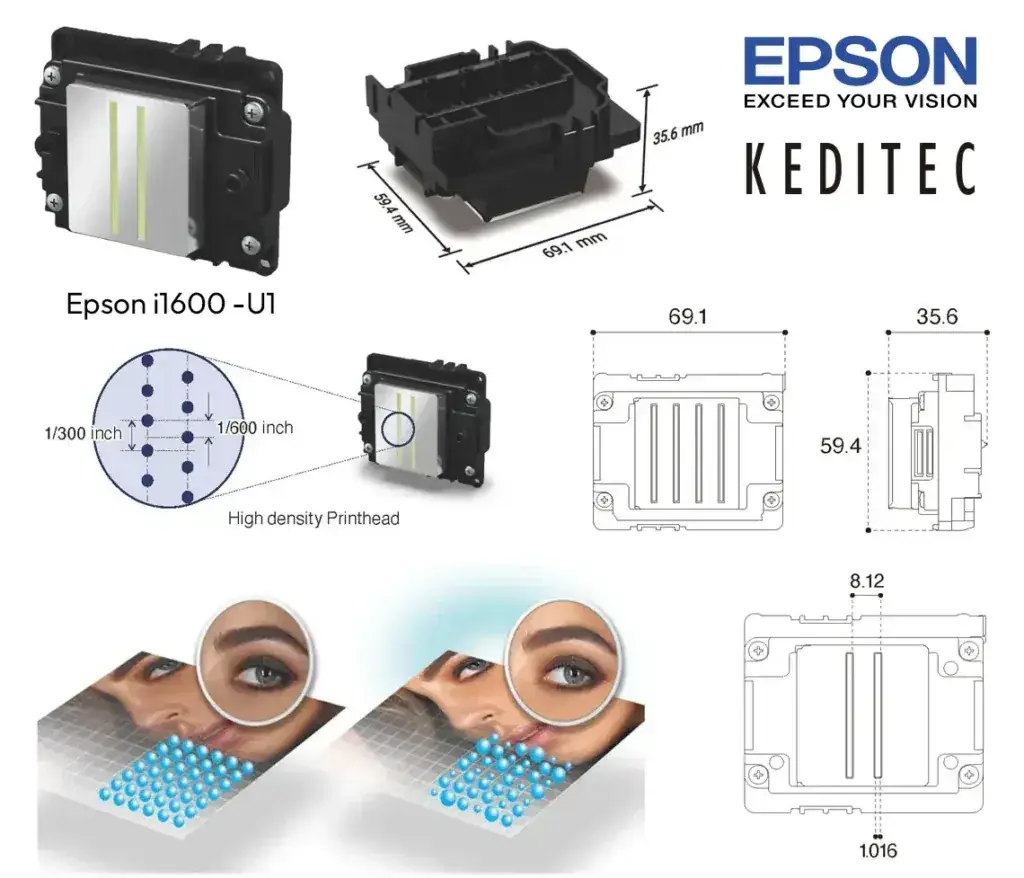

- Model : I1600-U1
- Ink Types : UV ink
- Size(width x depth x height)(mm) : 69.1x 59.4 x 35.6 mm
- Weight : 80 g
- Nozzle Numbers : 1600
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle Row : 4 rows
- Nozzle Resolution : 300 npi /row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release : 5 pl at 43.2 kHz
- 3 gray release : 6, 12.5 pl at 21.6 kHz
- 4 gray release : 3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range : 5-7 mPa･s
- Positioning Mechanism : Reference hole

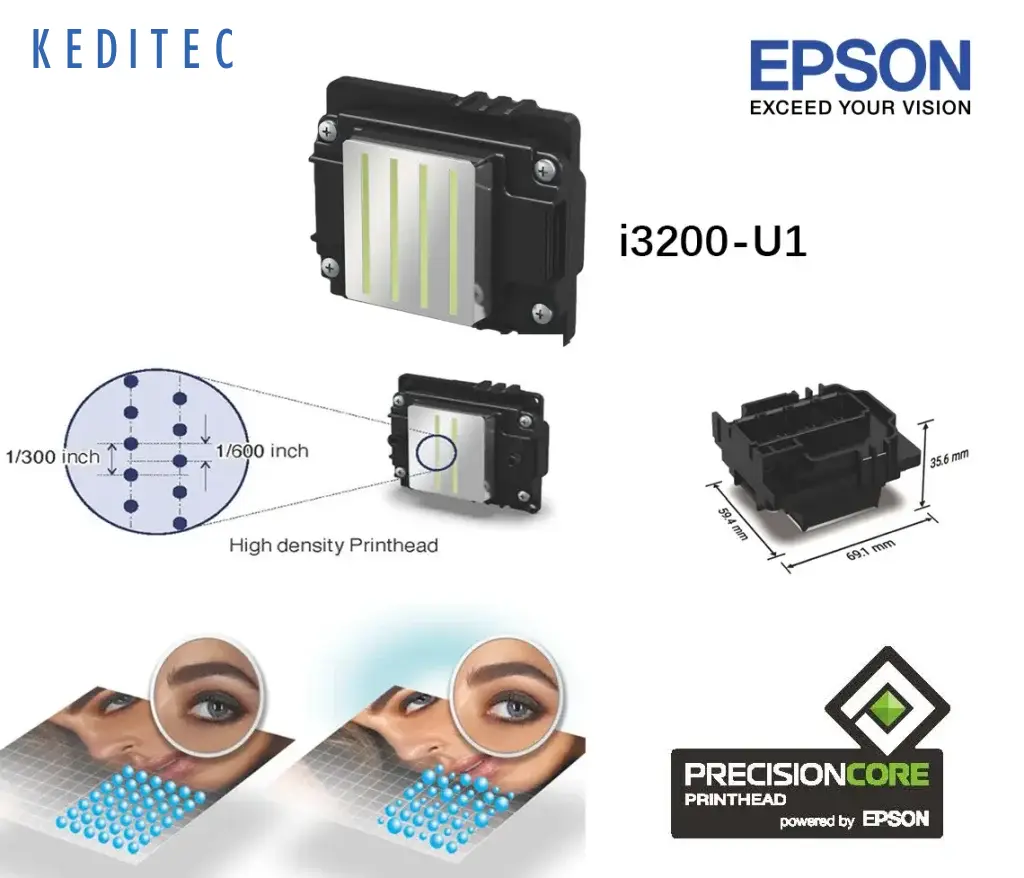

- Model : I3200-U1
- Ink Types : UV ink
- Size(width x depth x height)(mm) : 69.1×59.4×35.6
- Weight : 82g
- Nozzle Numbers : 3200
- Nozzle Row : 8 rows
- Nozzle pitch/nozzle row : 1/300 inch
- Max color/head : 4 colors
- Nozzle Resolution : 300npi/1row 600npi/2row
- Effective printing width (mm) : 338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release : 5pl 43.2kHZ
- 3 gray release : 6,12.5pl 21.6kHZ
- 4 gray release : 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range : 5-7 mPa･s
- Model：I3200-U1 HD
- Ink Types：UV ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 8 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Specifications
Printer size
- Length : 850 mm
- Width : 1160 mm
- Height : 880 mm
- weight : 150 kg
Packing size
- Length : 900 mm
- Width : 1200 mm
- Height : 1000 mm
- weight : 160 kg
RIP software
- Maintop
- Flexi
- Riin
Work environment
- Temperature: 5 – 104 ° C
- Humidity: 20 – 80%
Print resolution / Speed / dpi
- 4 pass : 12 m²/h ( 720×1200dpi )
- 6 pass : 8 m²/h ( 720×1200dpi )
- 8 pass : 7 m²/h ( 720×1200dpi )
Power
- 3500W for drawing
- 2200W for front
- middle & rear heating
Voltage
- AC 110V ± 10%
- AC 220V ± 10%
- 50/60 HZ
Details

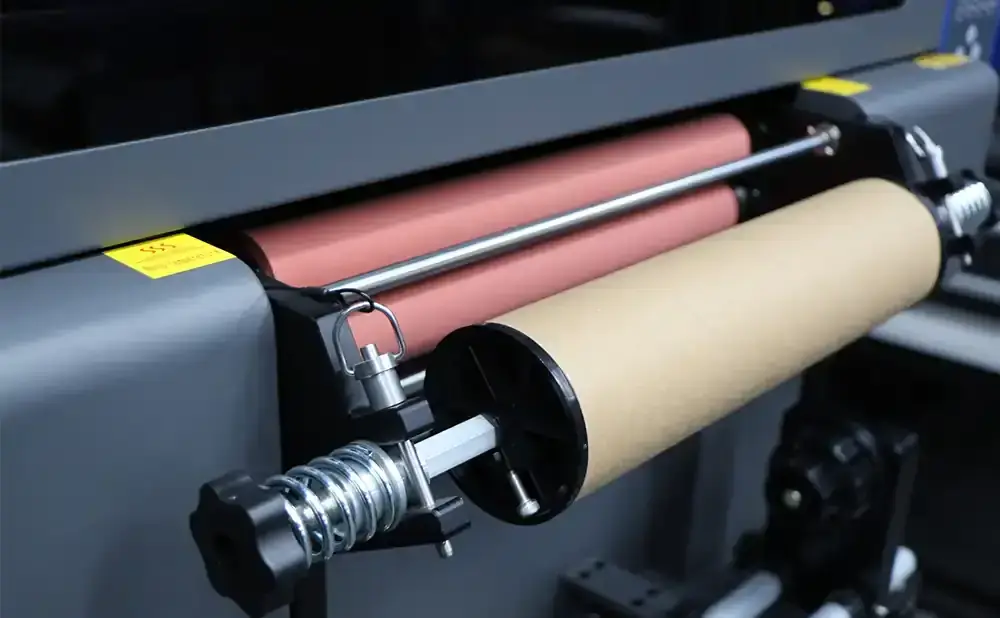

Double electric heating pressure roller

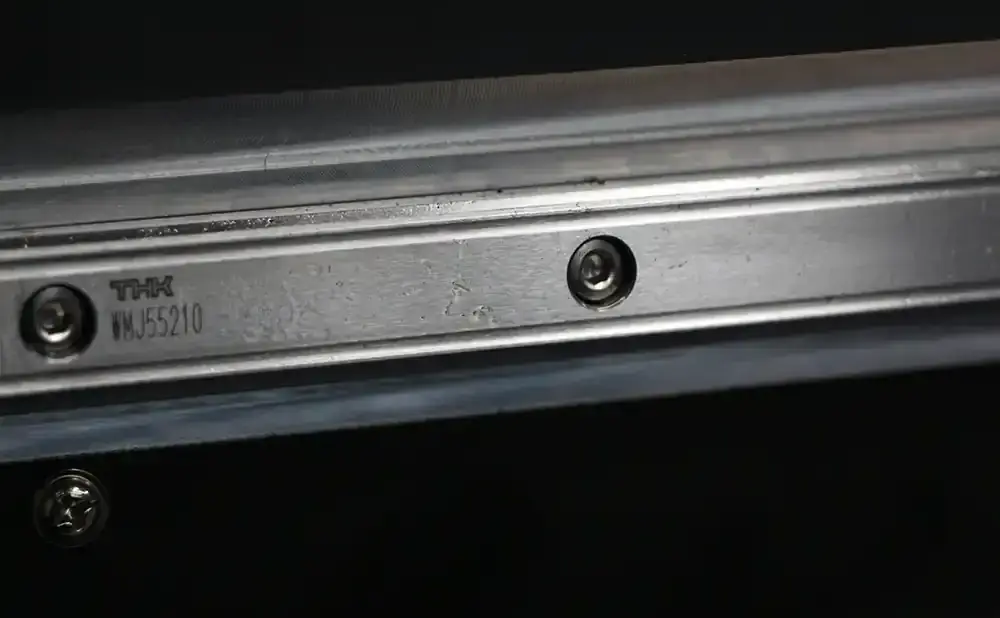

THK brand guide
All-black light-proof ink volume design

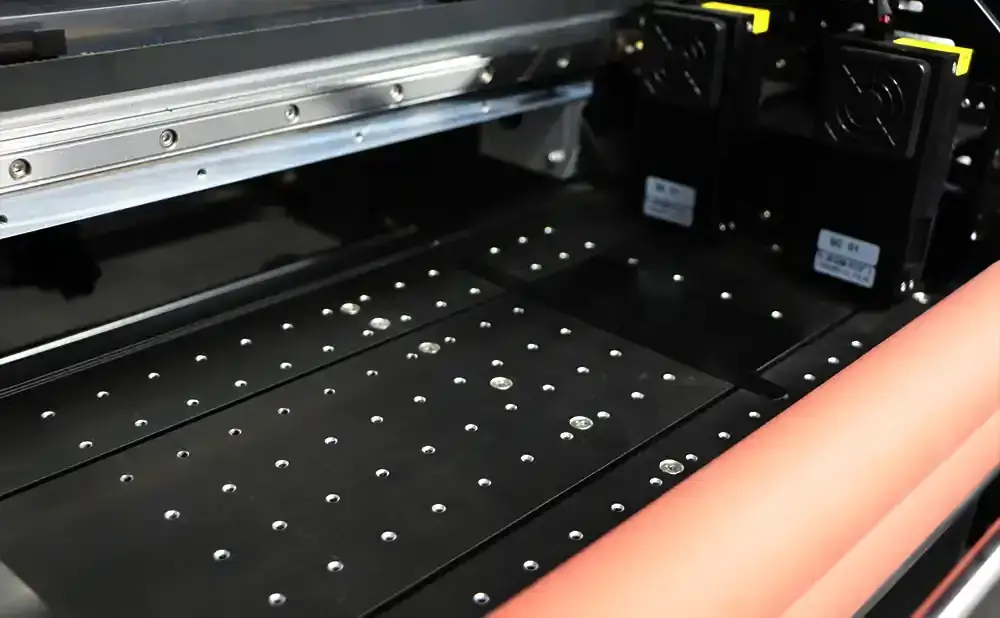

Porous negative pressure suction plate

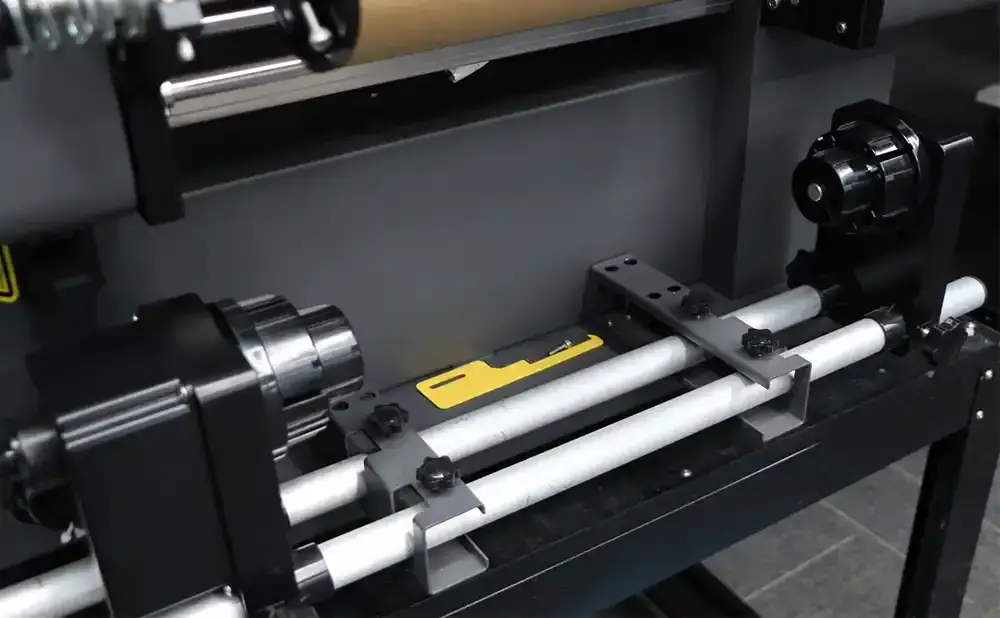

Electric rear feed system

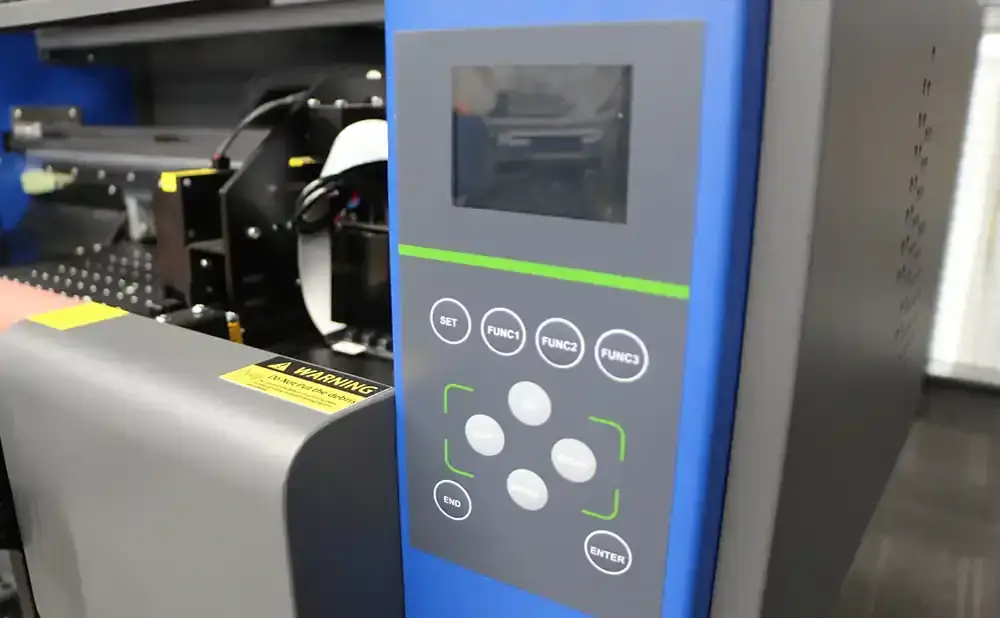

Membrane switch button

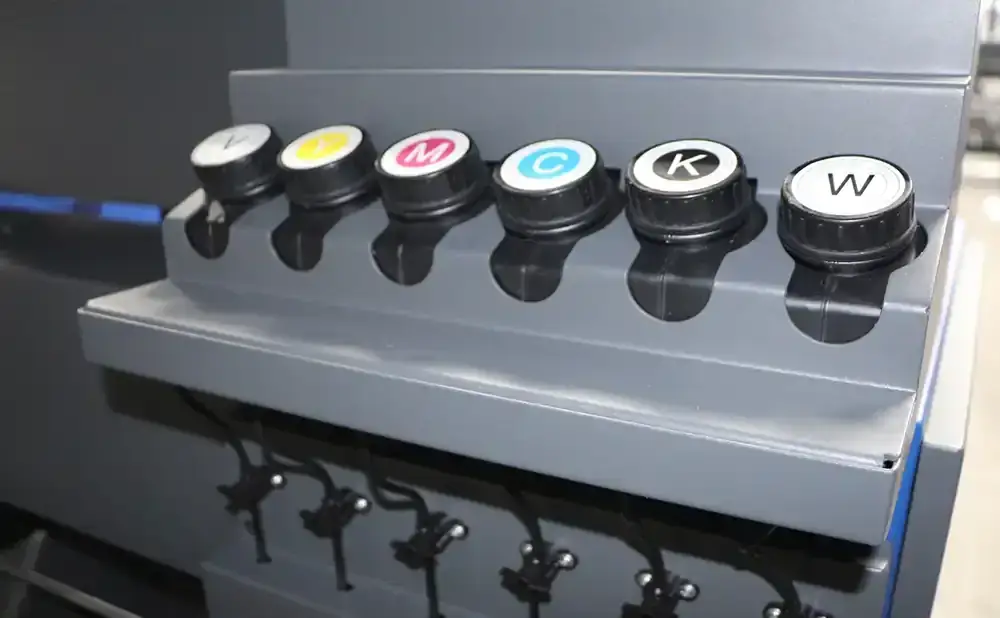

Five-color ink cartridge

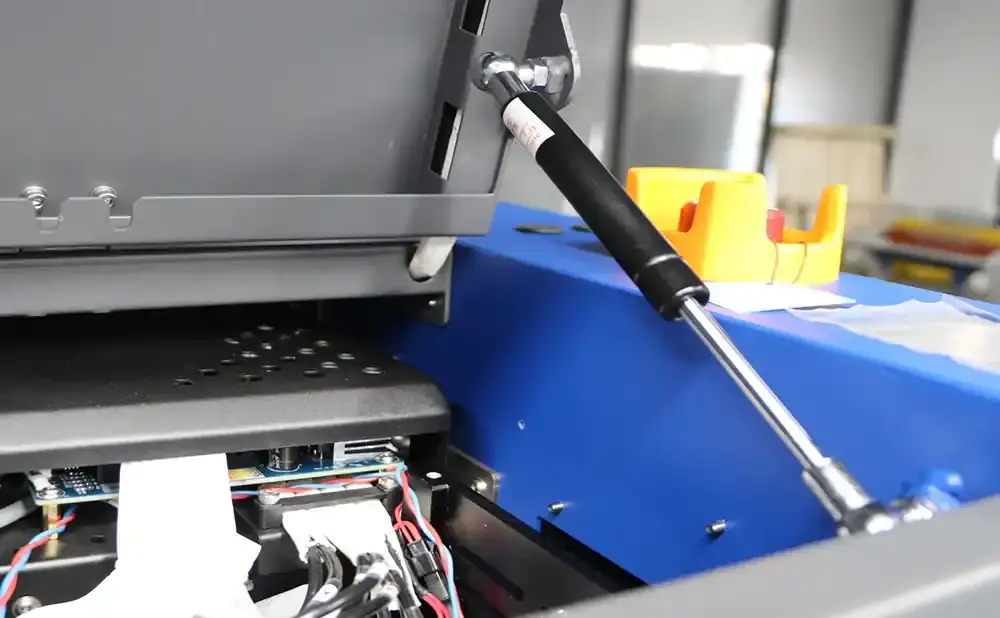

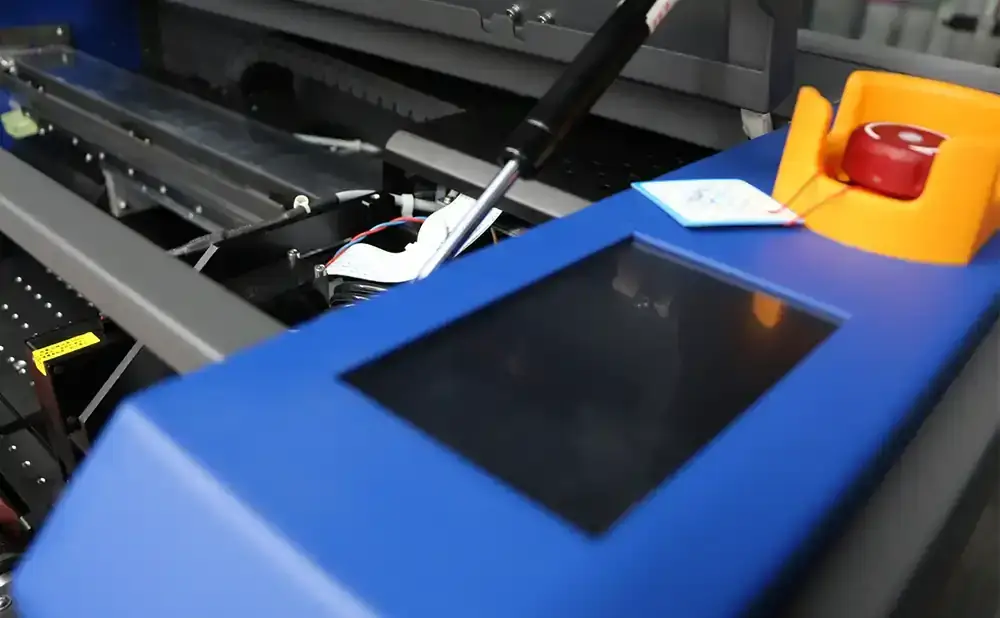

Hydraulic cover support rod

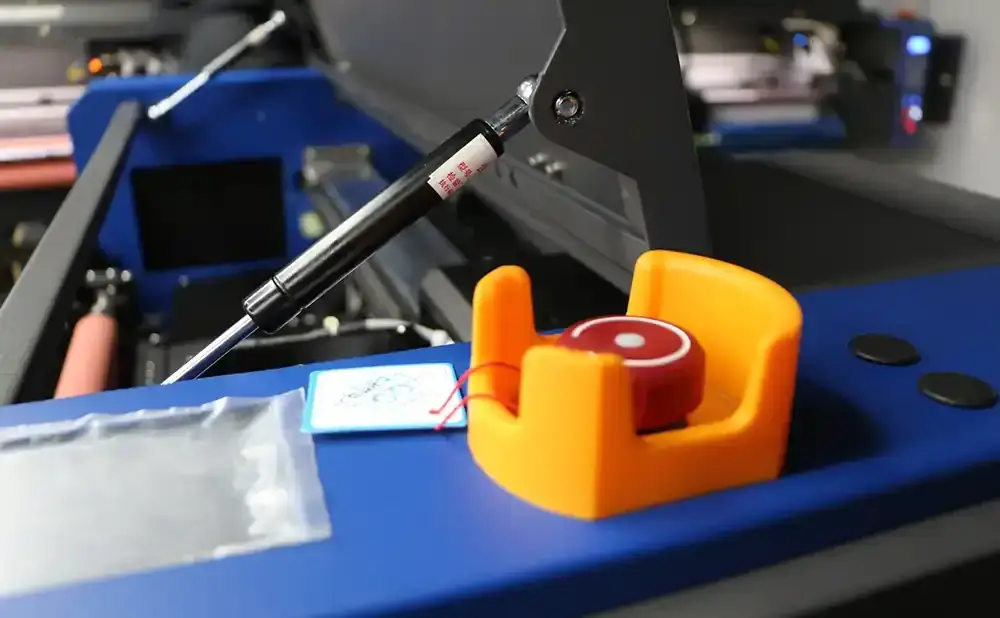

One-button brake safety switch
Three-color printing status monitoring alarm light
transparent black visual window
Monitor panel
Consumables
Keditec UV ink

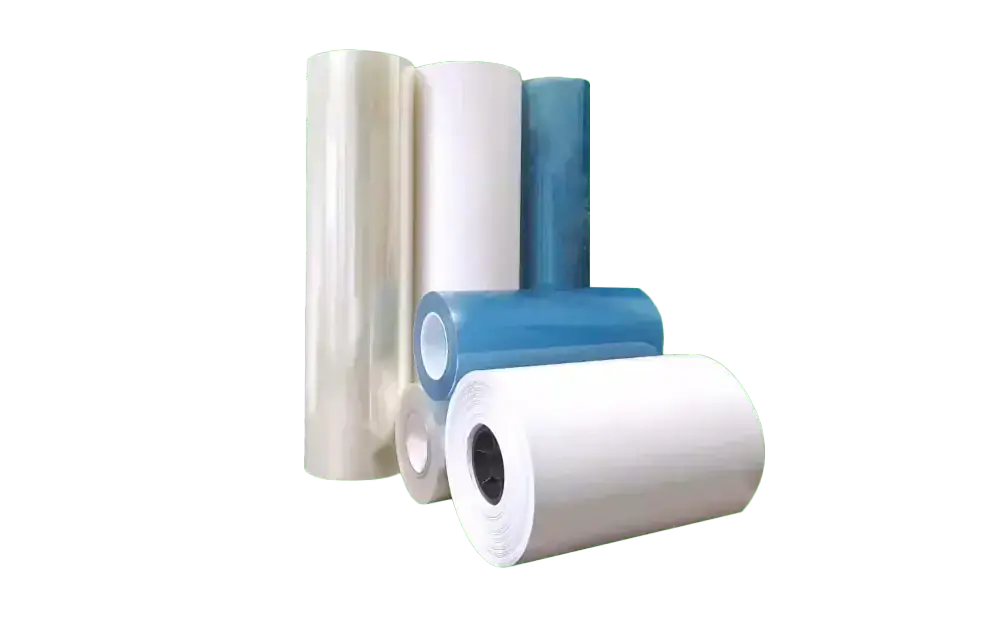

UV DTF AB film
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
Can UV printers print on anything?
UV printers can print on many different substrates, including wood, plastic, ceramics, metal, leather, PET, acrylic, glass, etc. (Due to the limited adhesion of UV ink, smooth surfaces such as mirrors and glass require a coating layer).
Is UV printing scratch-resistant? Can it be cleaned?
Using Keditec’s UV ink, the finished product is waterproof, anti-fading, and the printing surface is scratch-resistant and durable.
Does UV printing require a hot press?
UV printing uses specialized UV inks. UV LEDs cure the ink to the print medium during printing rather than heat curing. No hot press required
What can UV flatbed printers print?
The UV flatbed printer can print on almost any flat material, such as mobile phone cases, medals, packaging boxes, leather, wood, ceramics, promotional items, PVC, etc. With fixtures, it can also print on curved surfaces, such as cups, golf balls, etc.
What are the differences between UV printers and UV DTF printers?
UV printers print directly on the substrate, while UV DTF printers first print on AB film and then adhere to the substrate. UV DTF printers are an extension of UV printers to make up for the shortcomings of UV printing.
