Professional heat transfer press machine, suitable for DTF and DTG printing heat transfer process. Features constant temperature and pressure control, uniform heating, ensures perfect transfer of printed patterns onto garments and textiles.
Heat transfer press machine
Keditec Heat Transfer Press Machine for DTF Printing, Sublimation Printing, and Textile Transfer Applications.
Configuration
- Product model : Keditec H1
- Heating method : Resistance plate heating
- Drive mode: Motor drive / Pneumatic drive
- Heating unit : Electric heating
Key features
- Electric automatic program control, elegant experience.
- 3CM imported aviation aluminum plate.
- The error of the center edge temperature with high flatness and uniform heating is less than ± 1 °.
- The service life is up to 20 years, and it is not easily deformed.
- With a pressure of around 800 pounds, it can be used for bonding, hot drilling, high-demand thermal sublimation, and to maintain the fabric unchanged.
- Put the clothes into the clothes, the design is convenient to put the clothes into the clothes, and the front and rear presses are placed and positioned for convenience.
Automatic
Electric
Operation
Data and touch on a single LCD screen
High flatness
keditec's technical can do it
Specifications
Heating panel size
- Length : 450mm
- Width : 400mm
- Thickness: 35mm
Machine size
- Length : 80mm
- Width : 100 mm
- Height : 780mm
Temperature range
- 0-200℃
Working pressure (KG/CM ²)
- 0-8
Operating temperature
- Warm-up time : 100s
- Operating temperature : 120℃
- Shell temperature : 25℃
- Alarm temperature : 210℃
Power
- 3500W
Voltage
- 110V 50HZ
- 220V 60HZ
Details

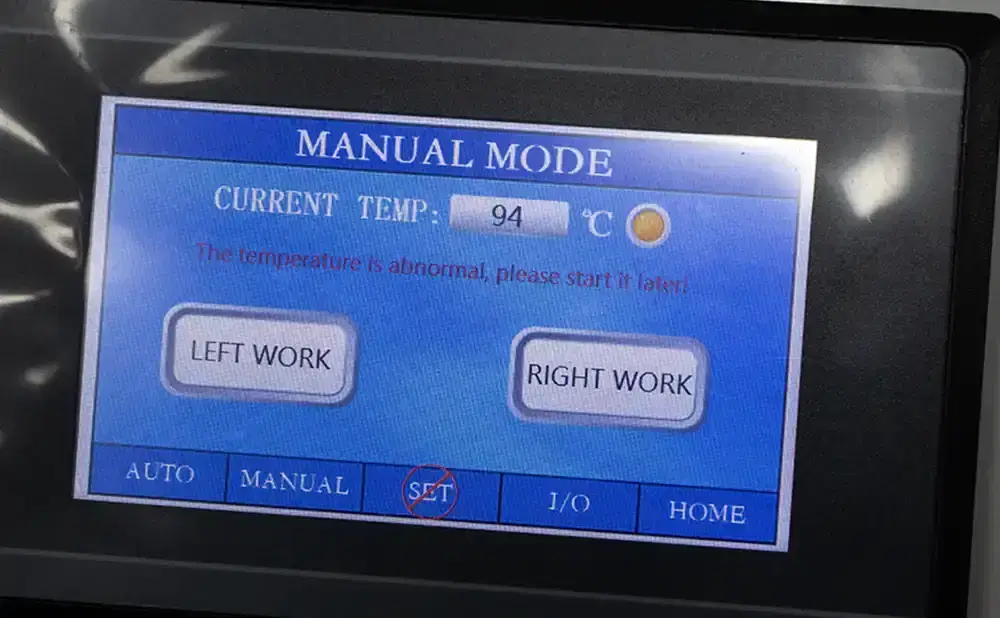

High definition touch screen display
Temperature parameters and controls are integrated into this display, and novice controls are clear at a glance. Automated programs make transfer printing easy.

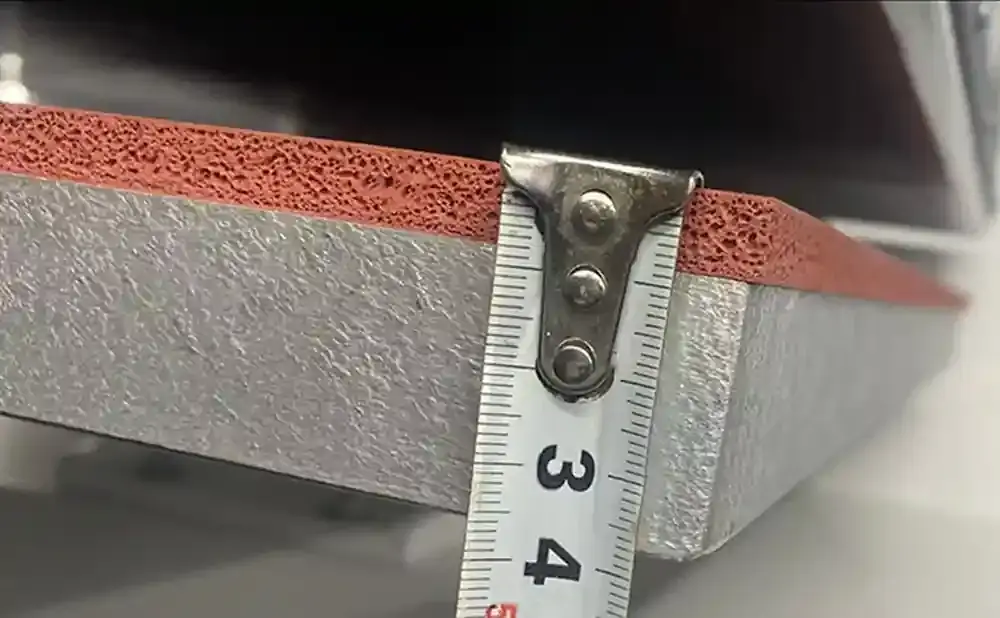

High quality heating plate
We have considered the heat resistance and rigidity of the PTFE heating rubber pad and 3mm thick aluminum plate as the heating plate, making it more durable.

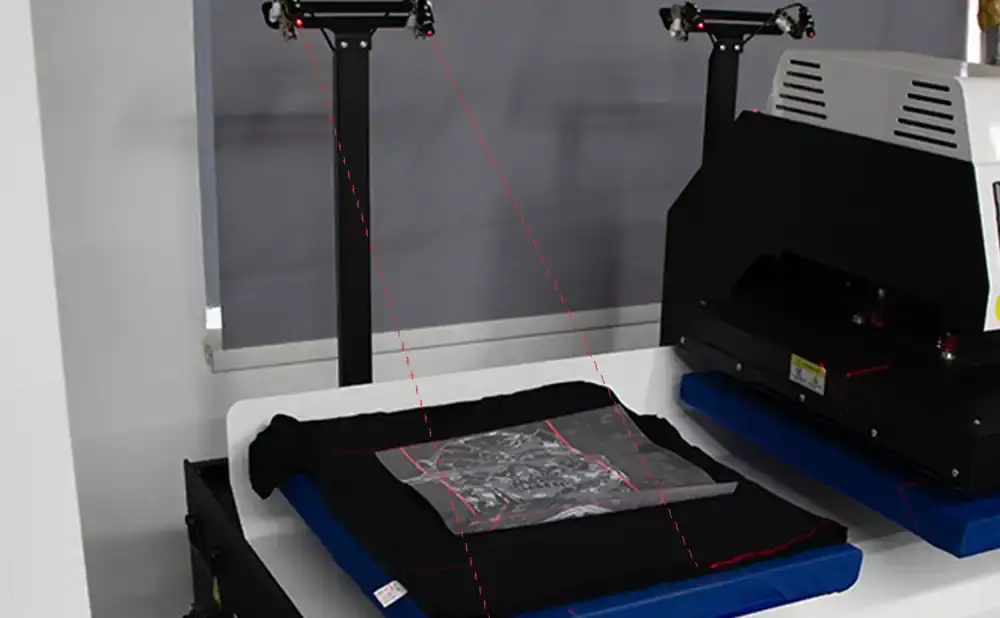

Four red laser-aligned displays
Equipped with four left and right laser alignment aids, allowing beginners to align the transfer object, saving tool measurement.
Effect on reflective materials
Laser positioning has shown excellent results in various materials, and our choice of laser is based on careful consideration.
Cost display time
As we all know, bronzing membrane separation requires high temperature. We use 120℃ to preheat the product, cover the printed film for secondary heating, and the final effect is shown in the figure.
