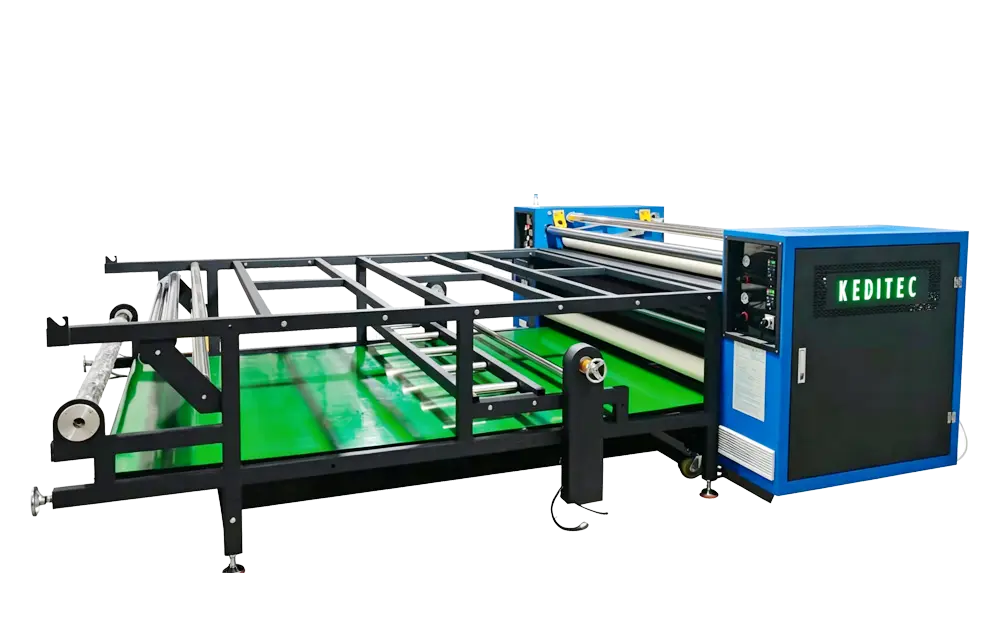

K-R02 is a multifunctional roller heat transfer machine.
It supports both roll fabric and cut piece printing, ideal for sampling and small batch production.
With a Teflon-coated drum, it delivers bright, even transfer patterns.
It features automatic feeding and blanket correction, stable temperature and pressure control, and multiple optional roller sizes. It is suitable for sublimation heat transfer on garments, bed sheets, pillows, curtains, bags and all types of textiles.
| Parameter | 200mm Roller | 300mm Roller | 420mm Roller | 600mm Roller | 800mm Roller | 1000mm Roller | 1200mm Roller |
|---|---|---|---|---|---|---|---|
| Roller Diameter (mm) | 200 | 300 | 420 | 600 | 800 | 1000 | 1200 |
| Working Width (mm) | 1700/1900 | 1700/1900 | 1700/1900 | 1700/1900 | 1700/1900 | 1700/1900 | 1700/1900 |
| Voltage (V) | 220/380 | 220/380 | 380 | 380 | 380 | 380 | 380 |
| Power (KW) | 12 | 18 | 24 | 48 | 72/108 | 110 | 120 |
| Current (Amp) | 54/18 A | 82/27 A | 36 A | 73 A | 109 A | 166 A | 166 A |
| Heating Element Qty (Bar) | 6 pcs | 9 pcs | 12 pcs | 24 pcs | 36 pcs | 54 pcs | 60 pcs |
| Blanket Alignment | Manual | Manual | Manual | Auto / Manual Optional | Auto / Manual Optional | Auto / Manual Optional | Auto / Manual Optional |
| Weight (KG) | 1200 | 1505 | 2600 | 2980 | 3000 | 4600 | 5600 |
| Transfer Speed (m/h) | 40–50 | 90–100 | 130–150 | 400 | 900 | 1500 | 1800 |
| Pressure Range (kg/cm²) | 0–4.0 | 0–4.0 | 0–4.0 | 0–4.0 | 0–4.0 | 0–4.0 | 0–4.0 |
| Temperature Range (°C) | 0–250 | 0–250 | 0–250 | 0–250 | 0–250 | 0–250 | 0–250 |
| Table Length (m) | 1.5 | 1.5 | 2.6 | 3.35 | 3.35 | 3.35 | 3.35 |
| Air Compressed Shaft (piece) | 2 | 2 | 2 | 2 | 2 | 5 | 5 |
