1.6m width wide format UV roll-to-roll printer, with multi-row high-precision UV printheads, supporting high-speed and high-resolution large-format UV printing. Perfect for outdoor advertising, signage, and large-format decorative printing.
Keditec 1600 UV printer
Keditec 1600 UV Printer for Large Format UV Flatbed Printing and Industrial Advertising Production.
Configuration
- Product model : 1600 UV printer
- Print head : EPSON i3200-U1
- Number of print heads : 2
- Max print size : ≤ 1600mm
- Printing resolution : Maximum 2400dpi
- Ink color : 6 colors ( CMYK+W+Varnish )
- Ink type : LED UV ink
- Max printing speed : 14 m²/h
- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- Print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Rich colors
5 colors
Maximum print width
1600mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Varnish
Red
Green
Blue
Orange
Specifications
Printer size
- Length : 3010mm
- Width : 740mm
- Height : 1420mm
- Weight : 280kg
Paking size
- Length : 3030mm
- Width : 760mm
- Height : 1430mm
- Weight : 300kg
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Print resolution / Speed / dpi
- 4 pass: 14m²/h ( 720×1200 )
- 6 pass: 10m²/h ( 720×1200 )
- 8 pass: 7m²/h ( 720×1200 )
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 10A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Print head
- Model ：I1600-U1
- Ink Types ：UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight：80 g
- Nozzle Numbers：1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution：300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width：33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa･s
- Positioning Mechanism：Reference hole

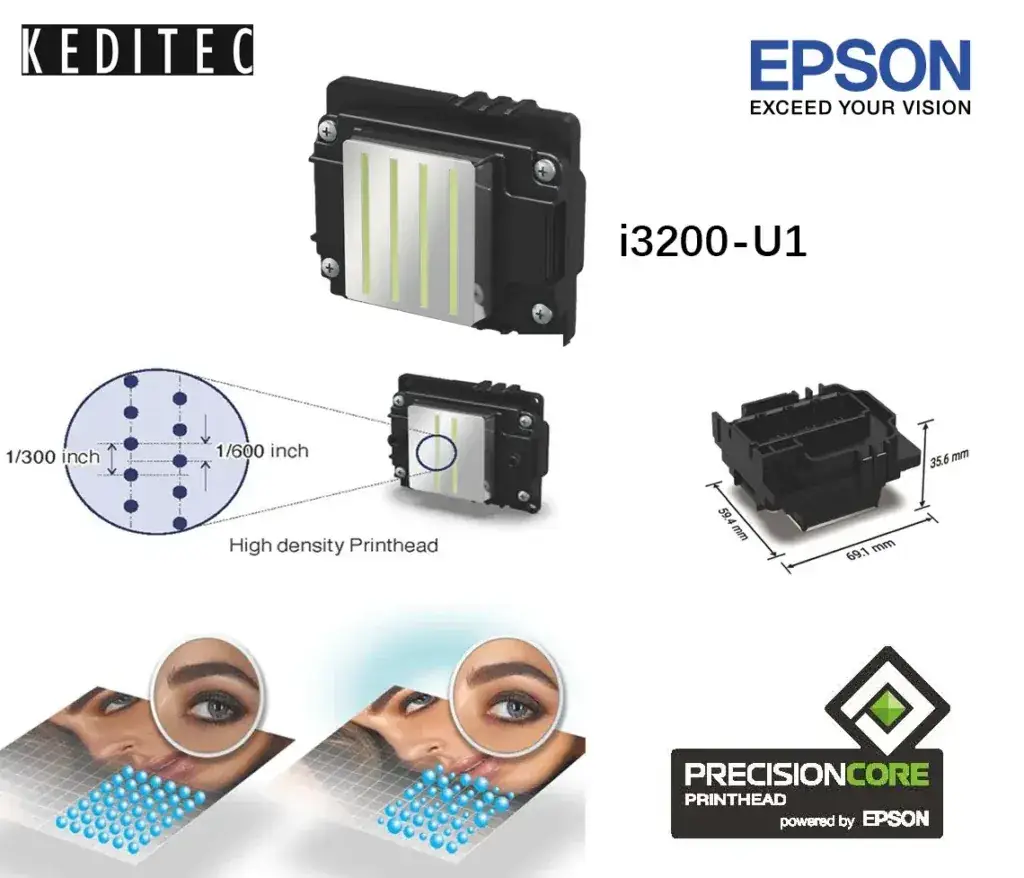

- Model：I3200-U1
- Ink Types：UV ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s
Details
Smart control panel
The operation buttons are simple and clear, enabling technicians to operate and handle printing needs more easily, quickly, and efficiently.
- With display screen
- Key simplification steps
Inkjet nozzle plate heating system
The printhead heating system ensures that the printhead can still function normally in a low temperature environment, ensuring the flow of ink.
- Heating design
- Easy to maintain.
Large ink supply system
The 1.5L large ink supply system supports batch printing, slowing down the frequency of frequent refilling of small ink cartridges.
White ink mixer
The white ink agitator continuously stirs during the printing process, and the white ink circulation system effectively prevents the white ink from clogging the print head.
Cartridge shortage alert
The lack of ink alarm system can effectively remind staff to add ink in time to avoid ink shortages affecting the printing process.
Silent linear guide
Quiet operation and good stability. Low noise, high speed, extended service life and long-term operation without maintenance are all achieved by significantly reducing friction between silent rail sliders and improving grease retention.
Application
Silver Stamping Gift Boxes
Tourist Attraction Souvenir Badges
Golf Balls Free Definition
Cool And Trendy Skateboarding
Plastic Neutralizer Pens
Hot Stamping Business Cards
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
Can UV printers print on anything?
UV printers can print on many different substrates, including wood, plastic, ceramics, metal, leather, PET, acrylic, glass, etc. (Due to the limited adhesion of UV ink, smooth surfaces such as mirrors and glass require a coating layer).
Is UV printing scratch-resistant? Can it be cleaned?
Using Keditec’s UV ink, the finished product is waterproof, anti-fading, and the printing surface is scratch-resistant and durable.
Does UV printing require a hot press?
UV printing uses specialized UV inks. UV LEDs cure the ink to the print medium during printing rather than heat curing. No hot press required
What can UV flatbed printers print?
The UV flatbed printer can print on almost any flat material, such as mobile phone cases, medals, packaging boxes, leather, wood, ceramics, promotional items, PVC, etc. With fixtures, it can also print on curved surfaces, such as cups, golf balls, etc.
What are the differences between UV printers and UV DTF printers?
UV printers print directly on the substrate, while UV DTF printers first print on AB film and then adhere to the substrate. UV DTF printers are an extension of UV printers to make up for the shortcomings of UV printing.
