What Is White Ink Layer Discontinuity in UV Printing?
In UV printing, white ink plays a critical role in priming, light blocking, and colour enhancement, and is widely used on transparent materials, dark substrates, and special process printing. White ink discontinuity refers to the phenomenon where the printed white ink layer appears non-continuous and uneven – this may be fine broken lines, bands of varying widths, or large areas of missing white.

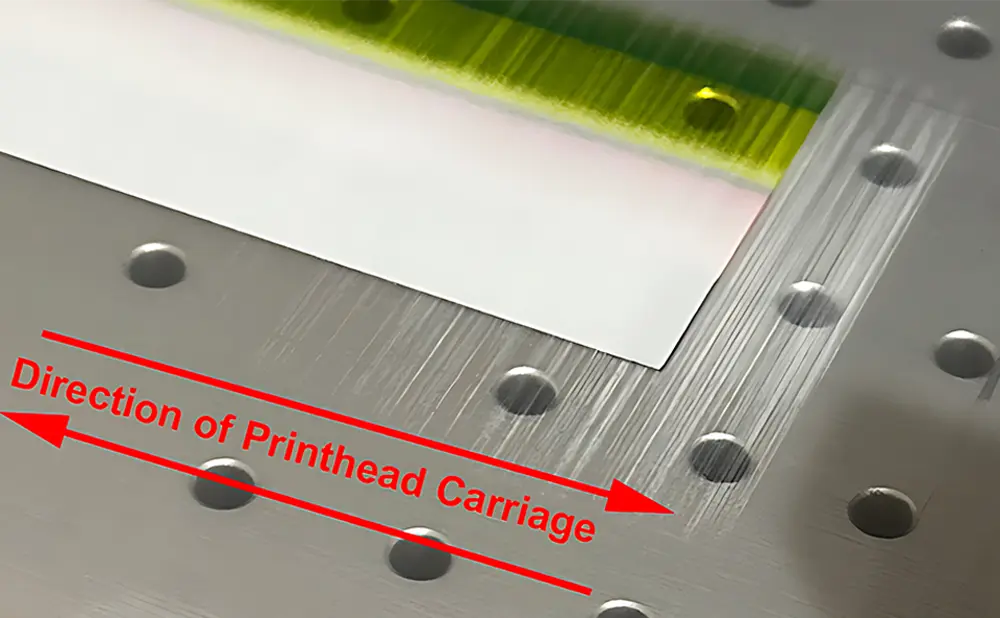

Typical symptoms include:
- Horizontal or vertical banding in the white ink layer
- Dot-shaped or stripe-shaped missing areas in large solid white fills
- Uneven white coverage, with light transmission or show-through
- Subsequent colour prints appearing dull or dark
A real-world example: In 2025, a signage manufacturing company in Zhejiang was printing transparent acrylic lightbox panels with a UV flatbed printer. The white ink layer frequently showed horizontal banding, causing the subsequent colour prints to appear dull. Customer rejections reached as high as 20%. After remote diagnosis, the Keditec technical team found that the white ink circulation system’s filter was severely clogged due to long-term neglect, and that the negative pressure setting was slightly too high, restricting ink supply. After cleaning the filter system and recalibrating the negative pressure, the white ink output became uniform again, and the customer acceptance rate rose to 98%.
The Five Core Causes of White Ink Discontinuity
Based on years of on-site service data from the Keditec technical team, the most common causes of white ink discontinuity are summarised below.
1. Settling of White Ink, Leading to Reduced Fluidity (The Most Frequent Trigger)
White ink contains a high concentration of titanium dioxide (TiO₂) pigment, which has a high density and specific gravity and tends to settle easily when left standing. If the stirring system is not working properly or the circulation lines are blocked, the pigment concentration at the bottom of the ink tank will be much higher than at the top. This results in uneven ink concentration and insufficient flow to the printhead, ultimately creating gaps in the printed layer.
Keditec observation: In our customer cases, more than 60% of white ink discontinuity issues are directly related to white ink settling or poor circulation. The problem is most pronounced on the first day of production after weekends or long holidays.
2. Printhead Clogging or Abnormal Nozzles
UV white ink pigment particles are relatively large, placing high demands on printhead precision and durability. Over time, nozzles can become clogged with cured ink residue, impurities, or due to improper maintenance. Clogged nozzles cannot eject droplets properly, directly resulting in missing lines or broken lines – i.e., white ink discontinuity.
3. Improper Negative Pressure System Settings
The negative pressure system maintains the ink pressure balance inside the printhead. Excessive negative pressure restricts ink supply, causing the printhead to be starved; insufficient negative pressure can lead to ink leakage or dripping. Unstable ink supply often results in local gaps or broken lines in the white ink layer.
4. Clogged or Aged Ink Supply Lines
If components in the ink supply system – such as ink bags, filters, or tubes – become blocked or degraded due to aging, the normal flow of white ink will be obstructed. When ink flow rate is insufficient, the printhead cannot eject droplets continuously and stably, resulting in discontinuity during printing.
5. Unreasonable Print Parameter Settings
Excessively high printing speed, improper feathering parameters, or insufficient print passes (PASS) can all reduce white ink coverage. In high-precision printing modes, if the ink ejection volume does not match the printing speed, banding and discontinuity are almost inevitable.
Quick Troubleshooting Guide for White Ink Discontinuity
| Cause | Typical Symptoms | Solution (with Priority) |
|---|---|---|
| White ink settling / poor circulation | Uneven concentration, fluctuating supply | (Highest) Check circulation system; stir white ink thoroughly |
| Incorrect negative pressure parameters | Insufficient supply or ink leakage | (Highest) Recalibrate negative pressure value |
| Printhead clogging | Missing/broken lines in test pattern | (Second) Run printhead cleaning cycle |
| Clogged ink supply lines | Slow flow, excessive air bubbles | (Second) Replace filters; purge air from lines |
| Unreasonable print parameters | Banding appears regularly, speed-related | (Third) Reduce speed; increase PASS count |
Systemic Solutions for White Ink Discontinuity
1. Strengthen White Ink Circulation and Stirring Management
- Regularly check whether the stirring motor and circulation pump in the white ink circulation system are working properly.
- Before production, thoroughly shake or circulate the white ink to ensure even dispersion of titanium dioxide and prevent settling.
- Keditec UV flatbed printers come standard with a white ink circulation system, which effectively prevents pigment sedimentation and ensures long-term stability of white ink output.
2. Strictly Follow Daily Printhead Maintenance
- Before daily start-up, perform a nozzle test (print a test pattern) to detect missing or broken lines in time.
- Regularly clean the printhead, perform moisturising, and purge ink tubes to prevent ink from curing inside nozzles.
- For severely clogged printheads, use professional cleaning fluid for deep maintenance.
- Keditec provides online training support to help customers master proper printhead maintenance methods.
3. Optimise Negative Pressure and Ink Supply Parameters
- Based on the equipment model and white ink characteristics, precisely adjust the negative pressure value to maintain a stable ink supply state.
- Simultaneously check the ink damper liquid level to ensure sufficient ink volume.
- Inspect filters for clogging to ensure an unobstructed ink flow path.
4. Regularly Maintain the Ink Supply System
- Establish a maintenance log and regularly replace filters, dampers, and aged ink tubes.
- If air bubbles are found in the ink supply system, perform purging immediately to prevent ink supply interruption.
5. Optimise Print Process Parameters
- According to the substrate characteristics, appropriately reduce printing speed and increase the number of passes (PASS) and white ink coverage.
- For large solid white areas, consider using double-layer white printing or multiple overprints to improve layer uniformity and opacity.
Preventive Maintenance Checklist
The following checklist is based on the standard maintenance protocols that the Keditec service team has developed for over 300 customers worldwide:
| Frequency | Maintenance Item | Specific Action |
|---|---|---|
| Daily | White ink stirring/circulation | Start the white ink circulation system before production to ensure uniform ink. |
| Daily | Printhead test | Print a test pattern to confirm all nozzles are firing correctly. |
| Daily | Printhead surface cleaning | Gently wipe the printhead surface with a lint-free cloth dampened with approved cleaning fluid. |
| Weekly | Filter inspection | Check if ink path filters are clogged; replace if necessary. |
| Monthly | Ink tubes and damper check | Inspect tubes for aging; check damper liquid level. |
| Quarterly | Deep maintenance of ink supply system | Thoroughly clean the white ink circulation system; replace wear parts. |
| Biannually | Full system calibration | Contact the manufacturer for calibration of negative pressure, waveforms, and other system parameters. |
Customer Case Studies: Real-World Resolution of White Ink Discontinuity
Case Study 1: A Lightbox Advertising Manufacturer in Guangzhou
- Problem: When printing transparent acrylic lightbox panels, the white ink layer showed regular horizontal banding, and subsequent colour prints appeared dull.
- Diagnosis: The white ink circulation system’s filter was severely clogged (not cleaned for over 3 months), and the negative pressure value was set too high.
- Solution: Replaced the filter, thoroughly cleaned the entire white ink circulation line, and adjusted the negative pressure from -4.5 kPa to -3.8 kPa.
- Result: White ink output uniformity was restored, colour print brightness improved, and customer complaints dropped by 95%.
Case Study 2: A Packaging Printing Enterprise in Shanghai
- Problem: A newly purchased UV flatbed printer showed large areas of dot-shaped missing white ink when printing on dark cardstock.
- Diagnosis: The factory-default print parameters (excessively high speed, insufficient PASS) had not been optimised for white ink characteristics.
- Solution: Keditec engineers provided remote guidance to reduce printing speed from 18 m²/h to 12 m²/h and increase PASS from 4 to 6.
- Result: White ink coverage became uniform and full, meeting the customer’s quality standards.
Both cases are shared with customer consent; original service records are available for verification.
Why Equipment Quality and Ink System Design Matter
The frequency of white ink discontinuity issues depends to a large extent on the printer’s ink supply system design and ink quality.
Keditec UV flatbed printers incorporate multiple specialised white-ink management technologies:
| Technology | Function |
|---|---|
| White ink circulation system | Continuously stirs white ink to prevent titanium dioxide sedimentation and ensure uniform concentration. |
| Precision negative pressure control system | Monitors and automatically adjusts ink supply pressure in real time to maintain stable ejection. |
| High-precision Epson printheads (i1600-U1 / i3200-U1) | Adapted to white ink particle characteristics, reducing clogging risks. |
| Dedicated white ink path | Prevents cross-contamination between white ink and other colour inks. |
| Intelligent waveform optimisation | Automatically matches the optimal ejection waveform to white ink characteristics. |
| Keditec specialty UV white ink | Particle size < 300 nm, with ultra-fine filtration and excellent fluidity. |
About the Author
The Keditec Technical Support Team is part of Nanjing Keditec Technology Co., Ltd. (Keditec), founded in 2010. The company specialises in the R&D and production of durable, advanced, and affordable professional digital printers – including UV, DTF, dye-sublimation, and new eco-friendly printers. Our core team members have over 10 years of experience in the digital printing industry and have collectively served more than 300 customers worldwide, covering advertising production, packaging printing, glass processing, custom gifts, and many other sectors.
Keditec holds ISO 9001:2015 certification and exports to more than 50 countries and regions across Europe, the Americas, Southeast Asia, and the Middle East. We provide one-stop printing solutions, including equipment, inks, and consumables, backed by a professional technical support team that responds within 24 hours.
Conclusion
White ink discontinuity is a common but entirely manageable quality issue in UV printing production. The causes involve multiple layers – the ink itself, the printhead, the ink supply system, and process parameters. By strengthening equipment maintenance, optimising the ink supply system, and properly configuring print parameters, you can effectively reduce white ink discontinuity and improve print quality and production efficiency.
If you encounter white ink discontinuity or any other UV printing technical challenges, please feel free to contact the Keditec technical support team – we offer free online diagnostics and remote guidance.
Frequently Asked Questions (FAQ)
Q: Why is white ink more prone to discontinuity than colour inks?
A: White ink contains a high concentration of titanium dioxide (TiO₂) pigment, which is dense and tends to settle easily. If the circulation system is not robust or maintenance is inadequate, settled pigment leads to uneven ink concentration, resulting in insufficient ink supply and printing gaps.
Q: How can I tell whether the problem is a clogged printhead or an ink supply issue?
A: A simple diagnostic method: print a test pattern. If missing lines appear at fixed positions, it is usually a nozzle clog; if the missing lines appear at random positions or the entire section is weak, it is more likely an ink supply system problem (clogged ink path, abnormal negative pressure, or white ink settling).
Q: Should the white ink circulation system be kept running at all times?
A: We recommend running it intermittently during standby (e.g., 5 minutes every 2 hours) and continuously during production. Before extended shutdowns (e.g., weekends or holidays), it is advisable to replace the white ink in the lines with cleaning fluid to prevent ink from curing and clogging.
Q: What is the fundamental solution to white ink discontinuity?
A: Prevention is better than cure. Choose a UV flatbed printer equipped with a white ink circulation system, use high-quality white ink, and establish a disciplined daily maintenance routine – all three are indispensable. The white ink circulation system on Keditec UV flatbed printers effectively addresses settling-related discontinuity at the source.
This article is based on the actual service experience of the Keditec technical team. All data comes from internal test reports and customer service records. For further technical assistance, please contact the Keditec technical support team.
