K600 PRO UV-DTF printer
K600 PRO UV-DTF printer
Keditec’s K600-PRO series UV printer has fully upgraded the traditional 5-color ink printing solution. Pioneering the use of 9-color technology solutions to showcase fluorescent colors in a wider range of fields.
Configuration
- Product model : K600 PRO UV-DTF
- Print head : 3 × EPSON i1600U1 or 3 × EPSON i1600U1 + 1 × EPSON i3200U1 HD
- Number of print heads : 3 / 4
- Max print size : ≤ 600mm
- Printing resolution : Maximum 2400 dpi
- Ink colors : 5 or 9 ( CMYK+W+FM,FY,FO,FG+Varnish )
- Ink type : Keditec UV ink
- Ink supply method : Siphon, positive pressure ink bag
- Max printing speed : 8 Pass : 7 m²/h
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International Shipping : DHL,FedEx,By Air,By Sea
Key features
- The surface plane can be transferred, and the transfer effect is good.
- 3 print nozzles to achieve white + CMYK + varnish multi-layer printing.
- Support hot stamping and hot silver, can achieve high gloss and high luxury custom effect.
- Printing with a sense of hierarchy, 3D relief, visibility, and tangibility.
- Efficient printing, stable output, cutting resistance, non-fading.
Unlimited creativity
Stable & secure
Simple operation
Colors
Specifications
Printer size
- Length : 1000 mm
- Width : 1800 mm
- Height : 1450 mm
- weight : 250 kg
Packing size
- Length : 1050 mm
- Width : 1850 mm
- Height : 1500 mm
- weight : 270 kg
RIP software
- Maintop
- Flexi
- Riin
Work environment
- Temperature: 5 – 104 ° C
- Humidity: 20 – 80%
Print resolution / Speed / dpi
- 4 pass : 12 m²/h ( 720×1200dpi )
- 6 pass : 8 m²/h ( 720×1200dpi )
- 8 pass : 7 m²/h ( 720×1200dpi )
Power
- 3500W for drawing and 2200W for front, middle and rear heating
Voltage
- AC 110V ± 10%.
- AC 220V ± 10%、
- 50/60 HZ
Print head

- Model :I1600-U1
- Ink Types :UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight:80 g
- Nozzle Numbers:1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution:300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width:33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa・s
- Positioning Mechanism:Reference hole

- Model:I3200-U1
- Ink Types:UV ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight:82g
- Nozzle Numbers:3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution:300npi/1row 600npi/2row
- Effective printing width (mm):338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa・s

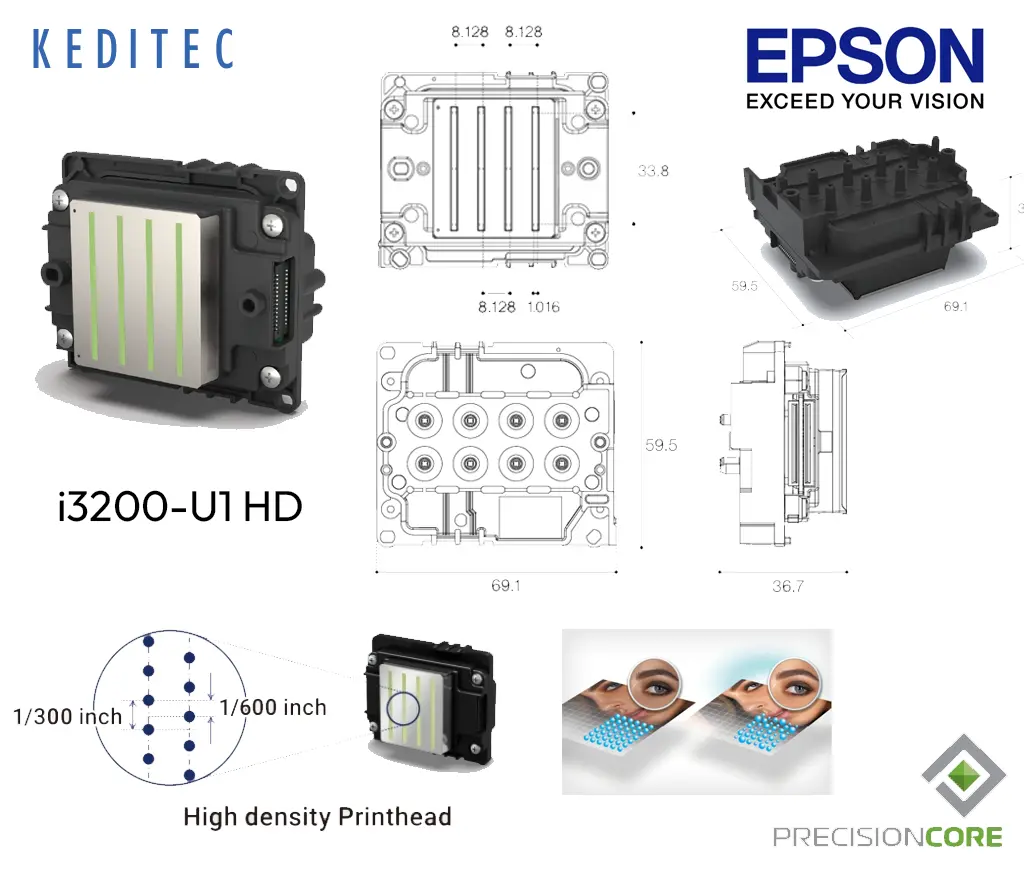

- Model:I3200-U1 HD
- Ink Types:UV ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight:82g
- Nozzle Numbers:3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 8 colors
- Nozzle Resolution:300npi/1row 600npi/2row
- Effective printing width (mm):338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa・s
Details

Smart control panel

Inkjet nozzle plate heating system

Reel heating system

Double group UV lamp curing

power outage protection

Large ink supply system

White ink mixer

Cartridge shortage alert

Silent linear guide

UV LED water cooling tank

Front and rear collection & discharge system
Consumables

UV ink

UV DTF AB film
Application

Silver Stamping Gift Boxes

Tourist Attraction Souvenir Badges

Golf Balls Free Definition

Cool And Trendy Skateboarding

Plastic Neutralizer Pens

Hot Stamping Business Cards
You may also need.

K600 UV-DTF printer
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
Can UV printers print on anything?
UV printers can print on many different substrates, including wood, plastic, ceramics, metal, leather, PET, acrylic, glass, etc. (Due to the limited adhesion of UV ink, smooth surfaces such as mirrors and glass require a coating layer).
Is UV printing scratch-resistant? Can it be cleaned?
Using Keditec’s UV ink, the finished product is waterproof, anti-fading, and the printing surface is scratch-resistant and durable.
Does UV printing require a hot press?
UV printing uses specialized UV inks. UV LEDs cure the ink to the print medium during printing rather than heat curing. No hot press required
What can UV flatbed printers print?
The UV flatbed printer can print on almost any flat material, such as mobile phone cases, medals, packaging boxes, leather, wood, ceramics, promotional items, PVC, etc. With fixtures, it can also print on curved surfaces, such as cups, golf balls, etc.
What are the differences between UV printers and UV DTF printers?
UV printers print directly on the substrate, while UV DTF printers first print on AB film and then adhere to the substrate. UV DTF printers are an extension of UV printers to make up for the shortcomings of UV printing.
