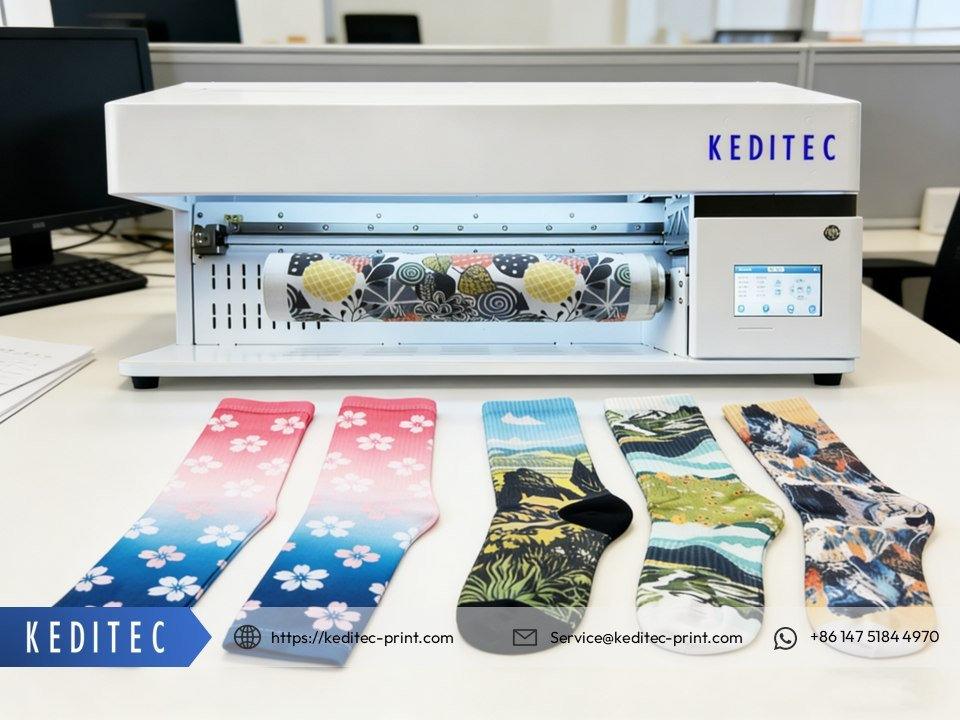

K450 – 360° inkjet printer
K450 - 360° inkjet printer
A brand-new series of printers using dtg technology for printing on cylindrical fabrics, codenamed 450, suitable for socks and sleeves, with more functions waiting for customers to develop.
Configuration
- Product model : K450 -360° inkjet printer
- Print head : Epson 1600A1
- Number of print heads : 1
- Print width : 450mm
- print speed : 14㎡/h ( 360× 600 dpi)
- Print media : width 258mm (Thickness 1nm-20mm)
- Ink colors : 4 Colors (CMYK)
- Ink type : Keditec DTG – 101 ink
Key features
- 360-degree surround printing
- Automatic Z-axis return of printing head
- The membrane sleeve used for printing test is convenient to take, easy to operate
- Panel control system

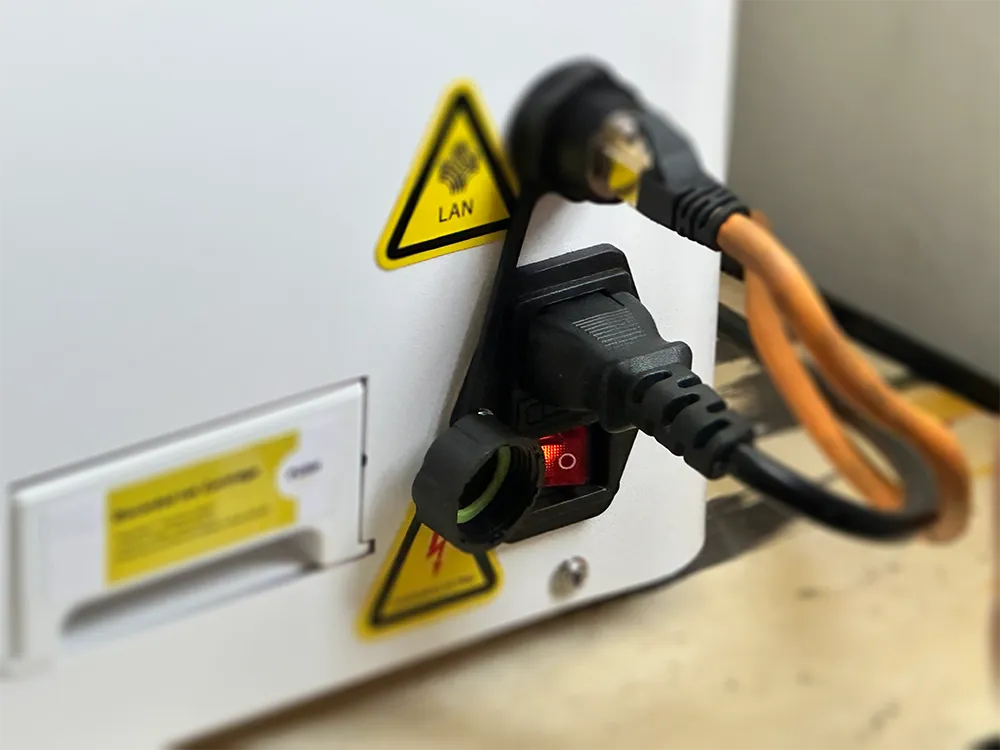

- Network cable connection
- Safety power supply
control

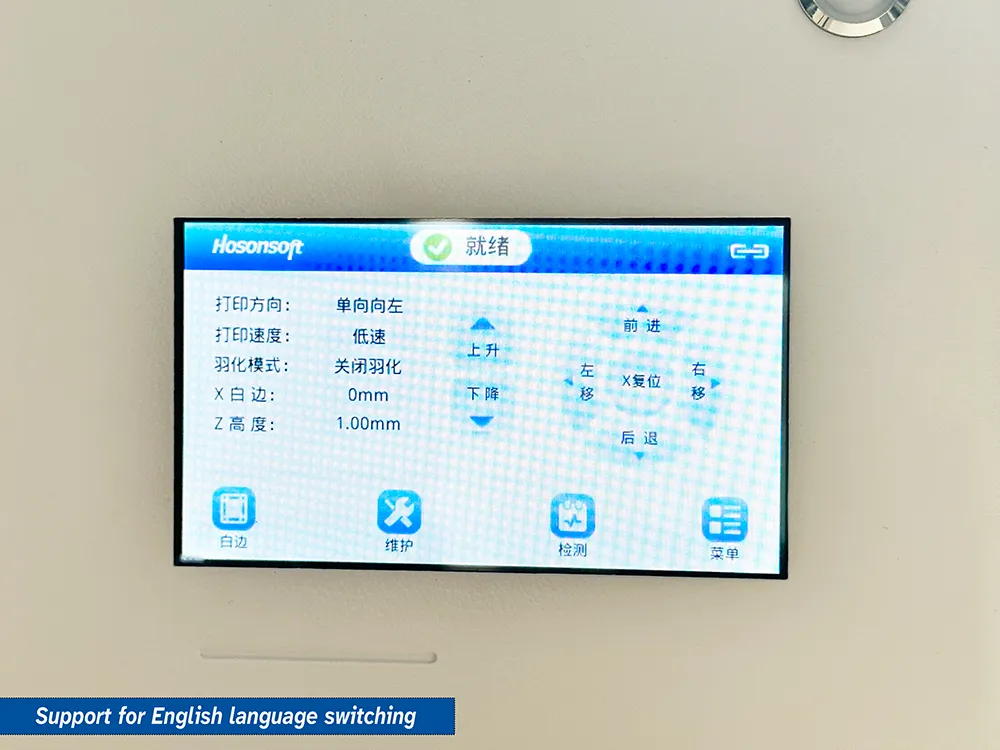

Touch screen click override

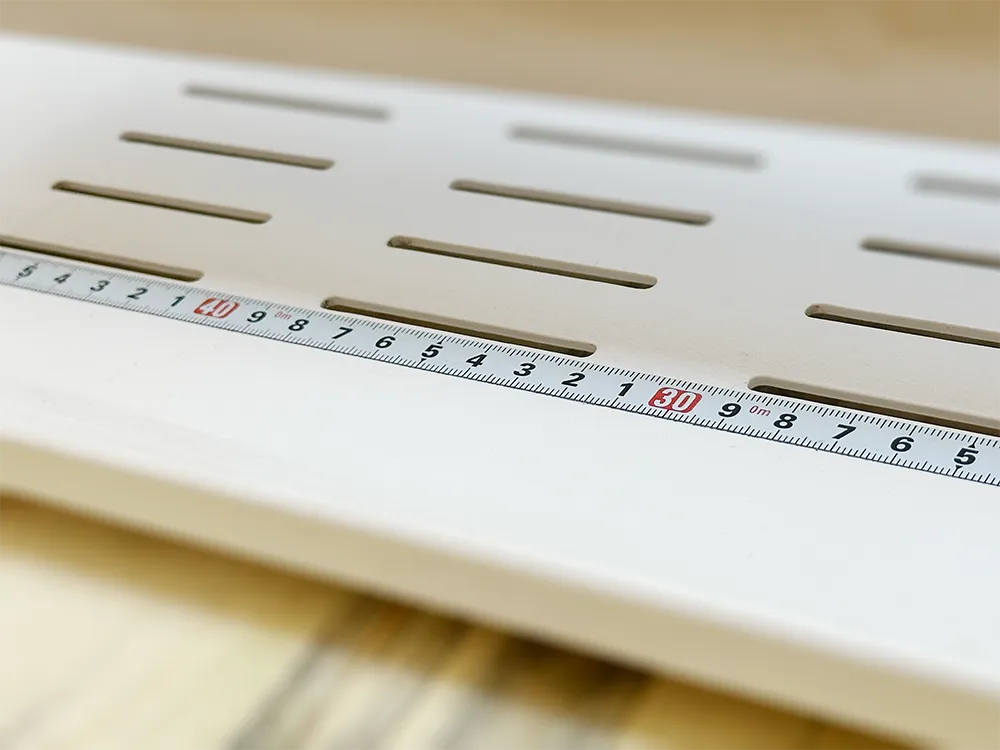

print width
450 mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White

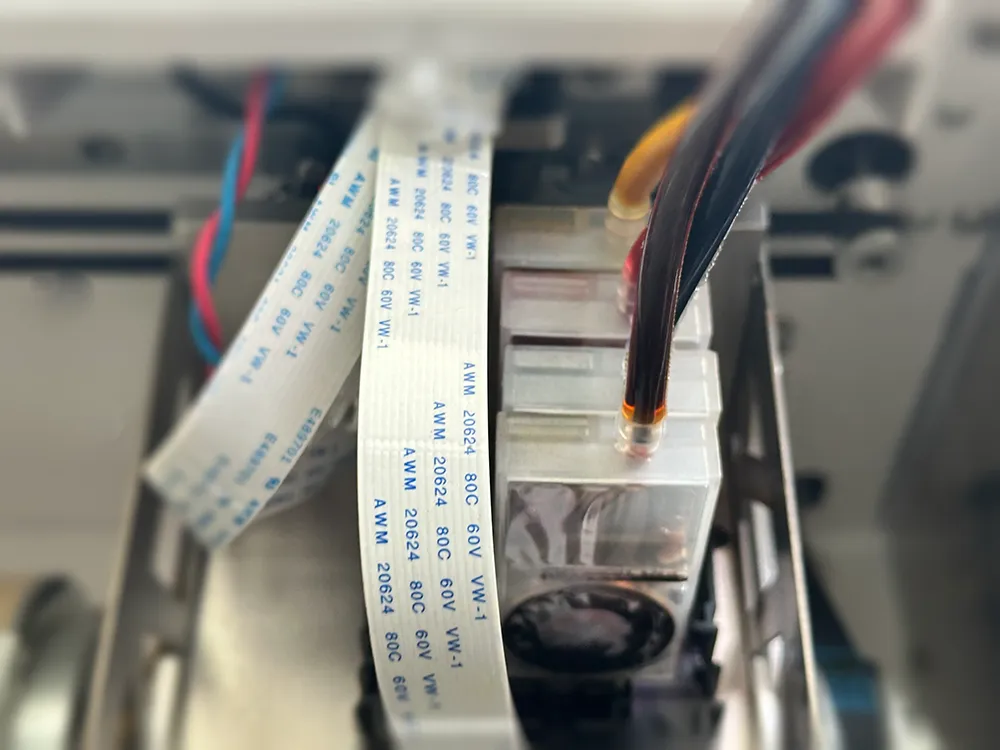

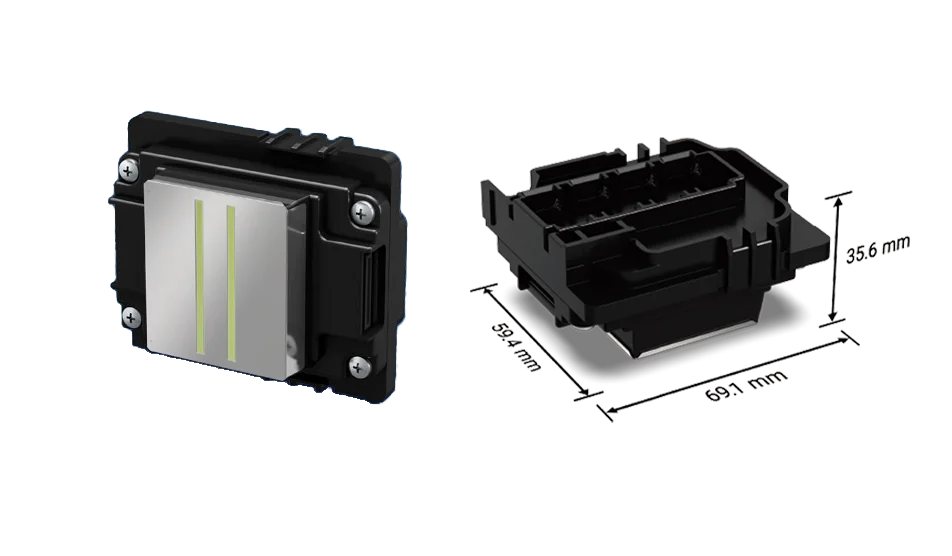

Print head
- Model : EPSON 1600A1
- Ink Types : AQ INK
- Size(width x depth x height)(mm) : 69.1 x 59.4 x 35.6
- Nozzle Numbers : 1600
- Nozzle Row : 6 rows
- Max color/head : 4 colors
- Max. number of colour inks : 4 colours
- Nozzle Resolution : 300npi/1row 600npi/2row
- Max. number of colour inks : 4 colours
- Jet Freqency(kHz) : 46 (single dot), 11.52(multi dot)
- Effective printing width (mm): 33.8
- Ink Drops(pl) : Level 2 grayscale 6 pl（43.2kHz）
- Ink Drops(pl) : Level 3 grayscale 6.3,12.3 pl（21.6kHz）
- Ink Drops(pl) : Level 4 grayscale 3.8,6.1,9.4 pl（21.6kHz）
- Ink Viscosity(mPa.s) : 3~4
Specifications
Printing Techonlogy
- 360° spiral printing
Printing width
- 450mm
Print Resolution
- 360×600dpi
- 360×900dpi
- 360×1200dpi
Printing Speed
- 30 pairs/h(360*600dpi)
- 14.4㎡/h(360*600dpi)
Connection method
- Gigabit Ethernet cable
- WiFi module connection
Voltage
- 110-220V single-phase AC
size
- L : 840mm
- W : 415mm
- H : 314mm
Packaging
- L : 895mm
- W : 485mm
- H : 400mm
weight
- 335kg
Environment
- Humidity: above 65 indoors
- Temperature:20-30 degrees Celsius

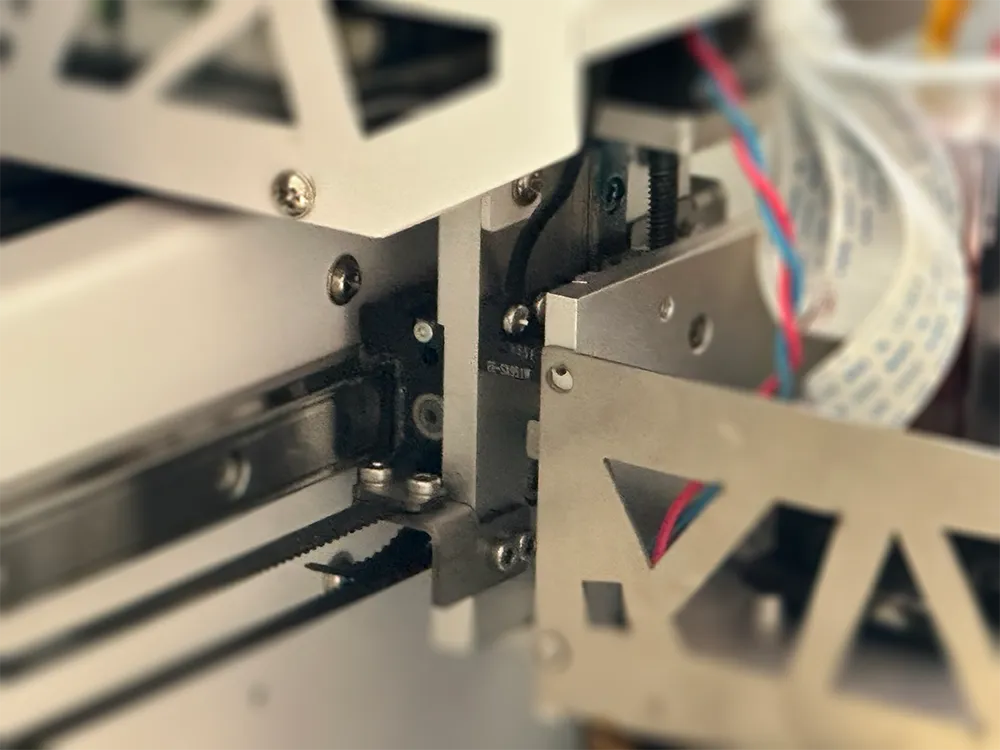

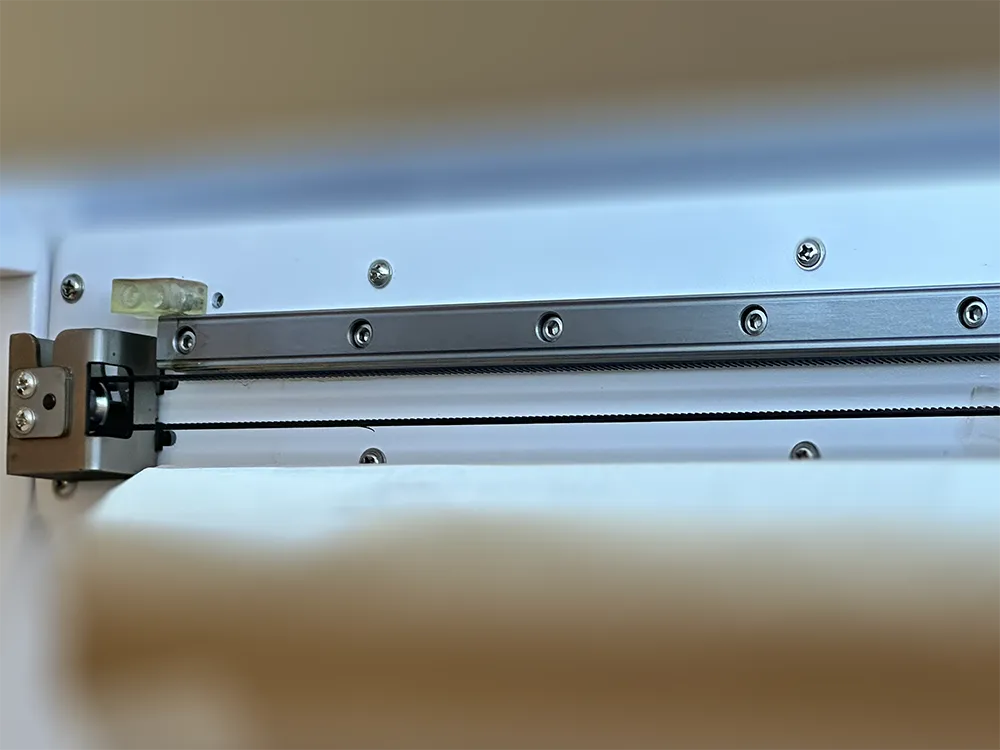

Details
application
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
How is your quality control?
We have a professional quality control team that performs 100% testing before delivery.
How can I get a fast and accurate quote?
Please select the product you are interested in on our official website’s product page and leave your email address, mobile phone number, company name and information about various product specifications.
How can I order a machine from you?
After you confirm the order details, we will send you a pro forma invoice for confirmation. Upon receiving the payment, we will arrange production. We will inform you of the shipping method, and the final product will be dispatched within the agreed time.
Can we become the exclusive distributor of your machine?
We look forward to working closely with you. After you have ordered multiple machines and can provide high-quality after-sales service, we can start discussing the distribution relationship.
What is the warranty for your machines?
Our machines come with a one-year warranty excluding the print head. During the warranty period, we will send some replacement parts free of charge. Damaged parts should be returned promptly.
