Industrial 1.9m sublimation printer
Industrial 1.9m sublimation printer
Keditec-1.9m TX industrial sublimation printer has a maximum print width of 2.0m, which is very suitable for polyester fabrics such as clothing, clothing, soft signage, sportswear, flags, tents, blankets, curtains, etc.
Configuration
-
Product model : K12-19 TX
-
Print head : EPSON i3200-A1
-
Number of print heads : 12
-
Max print size : ≤1900mm
-
Printing resolution : Maximum 3600dpi
-
Ink colors : 4 / 8 Colors ( CMYK+LC,LM,LK,LLK )
-
Ink type : Dye Sublimation ink
-
Receiving system : AC servo motor + inverter
-
Ink supply method : Negative pressure ink supply system
-
Warranty : 12 months (Ink system, printheads and ink capping are not covered)
-
International Shipping : DHL,FedEx,By Air,By Sea
Key features
- Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise.
- With KEDITEC series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition.
- Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
Inquire Now
Rich colors
4 / 8 colors
Maximum print width
2000mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 1633mm
- Width : 3595mm
- Height : 1732mm
- Weight : 1900kg
Standard components
- Ordinary collection and discharge system
- Automatic moisturizing and cleaning system
- External automatic control air heat dryer
- Ink level alarm system
Work environment
- Temperature: 15 – 32 ° C
- Humidity: 40% – 70%
Print resolution / Speed / dpi
- 2 pass: 298m²/h ( 720×1200dpi )
RIP software
- Maintop6.0
- Photoprint
- ONYX
- NeoStampa
- Print Factory
Power / Voltage
- 2500W AC 220V±5%
- 16A
- ± 50HZ
Accessories
- External Automatic Air Heat Integrated Dryer
- Low Ink Alarm System
- Air Shaft Media Loading and Take-up
- Automatic Moisturizing
- Cleaning Init
Print head
- Model：I3200-A1
- Ink Type: Aqueous ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 6 pl at 43.2 kHz
- 3 gray release: 6.3, 12.3 pl at 21.6 kHz4 gray release: 3.8, 5.5, 8.7 pl at 21.6 kHz / 3.8, 6.1, 9.4 pl at 21.6 kHz
- Viscosity range: 3-4 mP･a
Details
Mute linear motor system
No belt, no pvc encoder strip; Incresse the Carriage moving precision and Span life.

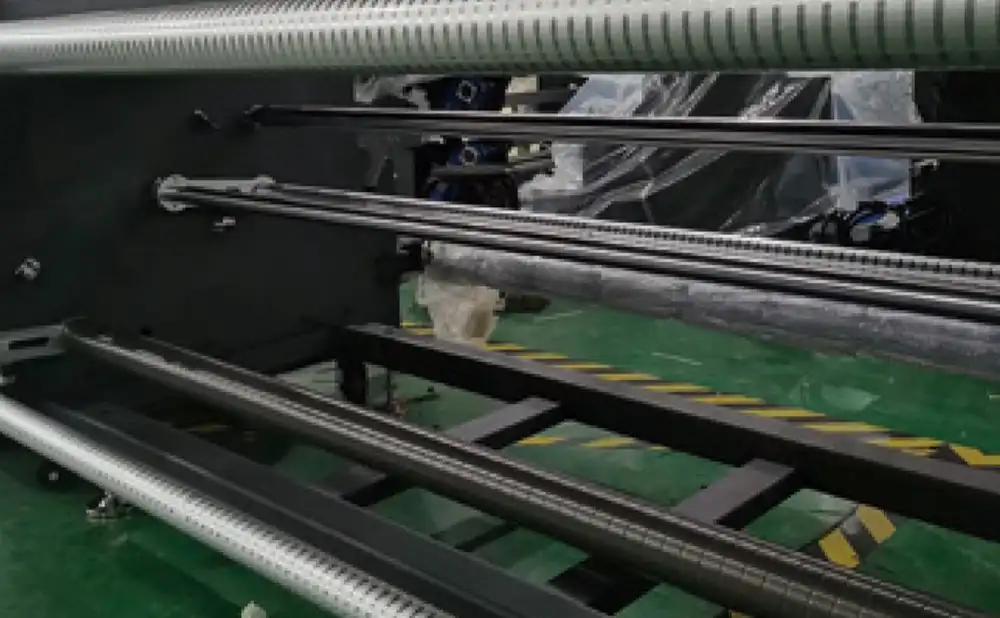

Air expansion shaft
Air expansion shaft rubber strip rolls collection and release, to ensure that the collection of material more stable and flush
Negative pressure ink supply system
Good for long time printing and cleaning
Pendulum rod
Pendulum rod tension structure
Magnetic grid
The Carriage drop point more precision
Sensor
High precision angle sensor
Vertical slotted air guide platform
Making the paper surface more flat
External infrared drying units
Precise control of drying temperature, reduce energy consumption
Sublimation paper
A3 / A4 super sheet subli-paper
AW art watercolor subli-paper
Super fast dry sublimation paper
Grey dye sublimation paper
Fast dry sublimation Paper
High tacky subli-paper
Sublimation ink
Sub high concentration ink
Sub normal concentration ink
Sub low concentration ink
You may also need.
Keditec-3.2m sublimation printer
Keditec-2.2m sublimation printer
Keditec-2.0m sublimation printer
Application
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
How is your quality control?
We have a professional quality control team that performs 100% testing before delivery.
How can I get a fast and accurate quote?
Please select the product you are interested in on our official website’s product page and leave your email address, mobile phone number, company name and information about various product specifications.
How can I order a machine from you?
After you confirm the order details, we will send you a pro forma invoice for confirmation. Upon receiving the payment, we will arrange production. We will inform you of the shipping method, and the final product will be dispatched within the agreed time.
Can we become the exclusive distributor of your machine?
We look forward to working closely with you. After you have ordered multiple machines and can provide high-quality after-sales service, we can start discussing the distribution relationship.
What is the warranty for your machines?
Our machines come with a one-year warranty excluding the print head. During the warranty period, we will send some replacement parts free of charge. Damaged parts should be returned promptly.
