Keditec K360C UV printer
Industrial GradeColor UV inkjet Printer
Product model：K360C
Print heads model ：EPSON i1600-U1 / i3200-U1
Number of print heads : 2 - 5
Print length ：0 mm - 300 mm
Print diameter ：Φ 40 - 1800 mm
Printing resolution : Maximum 1200 dpi
Ink color : 5 colors ( CMYK+W+Varnis )
Ink type : LED UV ink
Warranty : 12 months (Ink system, printheads and ink capping are not covered)
International Shipping : DHL,FedEx,By Air,By Sea
Key features
- Specially desianed and developed industrial arade color UV inkjet printer for cylinder/cone
- Widely used in such as thermos cups, cups
cosmetics packaging bottles - Only need 15 seconds to print a cylindrical product (60mm in diameter and 200mm in length),which is twice as fast as ordinary rotary stepping printing.
Inquire Now
Cylinder printing
Rotate the print once completed
Firm coloring
UV curing
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Red
Green
Blue
Orange
Specifications
Technology
- 360° seamless printing
- Epson print heads
- UV LED inkjet printing
- Quick printing
Paking size
- Length : 1420mm
- Width : 820mm
- Height : 1900mm
- Weight : 420kg
Print resolution
- 1200dpi
Print resolution / Speed
- Single color 20 seconds(60mm,200mm)
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20 – 80%
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 16A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Print head
- Model ：I1600-U1
- Ink Types ：UV ink
- Size(width x depth x height)(mm): 69.1x 59.4 x 35.6 mm
- Weight：80 g
- Nozzle Numbers：1600
- Nozzle pitch/nozzle row: 1/300 inch
- Nozzle Row: 4 rows
- Nozzle Resolution：300 npi /row 600 npi/2 rows
- Max. number of colour inks: 4 colours
- Effective print width：33.8 mm (1.33 inches)
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5 pl at 43.2 kHz
- 3 gray release: 6, 12.5 pl at 21.6 kHz
- 4 gray release:3.8, 6.2, 9.3 pl at 21.6 kHz
- Viscosity range: 5-7 mPa･s
- Positioning Mechanism：Reference hole
- Model：I3200-U1
- Ink Types：UV ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 5pl 43.2kHZ
- 3 gray release: 6,12.5pl 21.6kHZ
- 4 gray release: 3.8,6.2,9.3pl 21.6kHZ
- Viscosity range: 5-7 mPa･s

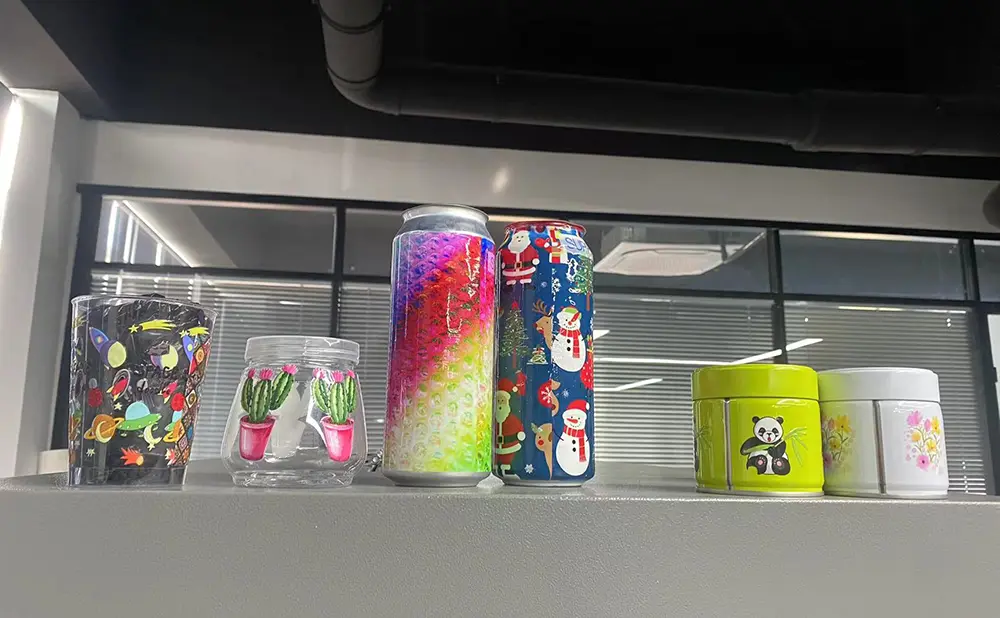

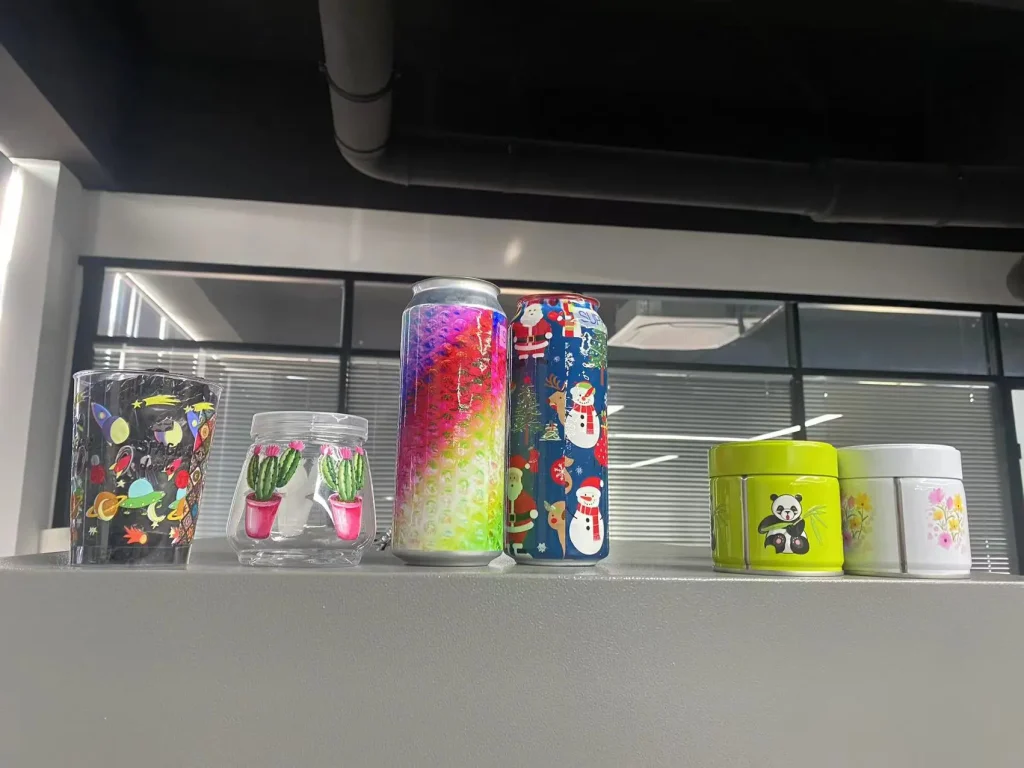

Finished product display
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
Can UV printers print on anything?
UV printers can print on many different substrates, including wood, plastic, ceramics, metal, leather, PET, acrylic, glass, etc. (Due to the limited adhesion of UV ink, smooth surfaces such as mirrors and glass require a coating layer).
Is UV printing scratch-resistant? Can it be cleaned?
Using Keditec’s UV ink, the finished product is waterproof, anti-fading, and the printing surface is scratch-resistant and durable.
Does UV printing require a hot press?
UV printing uses specialized UV inks. UV LEDs cure the ink to the print medium during printing rather than heat curing. No hot press required
What can UV flatbed printers print?
The UV flatbed printer can print on almost any flat material, such as mobile phone cases, medals, packaging boxes, leather, wood, ceramics, promotional items, PVC, etc. With fixtures, it can also print on curved surfaces, such as cups, golf balls, etc.
What are the differences between UV printers and UV DTF printers?
UV printers print directly on the substrate, while UV DTF printers first print on AB film and then adhere to the substrate. UV DTF printers are an extension of UV printers to make up for the shortcomings of UV printing.
