1.3m sublimation printer
1.3m sublimation printer
Discover our remarkable 1.3m sublimation printer! Engineered with advanced technology, it offers unrivaled sublimation capabilities. Ideal for large-format projects, it transforms your designs with vivid and long-lasting colors. Whether you’re in the signage, textile, or custom décor business, this printer ensures sharp details and seamless prints. Harness the power of sublimation to bring your creative visions to life, and stay ahead in the market with this top-notch 1.3m sublimation printer.
Configuration
- Product model : K2 – 1.3 m
- Print head : EPSON i3200-A1
- Number of print heads : 2
- Max print size : ≤1300mm
- Printing resolution : Maximum 2400dpi
- Ink colors : 4 / 8 Colors ( CMYK+LC,LM,LK,LLK )
- Ink type : Dye sublimation ink
- Receiving system : Ordinary retractable material
- Ink supply method : Siphon, positive pressure ink bag
- Warranty : 12 months (Ink system, printheads and ink capping are not covered)
- International shipping : DHL,FedEx,By Air,By Sea
Key features
- Heating control panel, better control effect, convenient power adjustment.
- Wider bottom box structure: The right box supports the placement of computers.
- Controllable variable frequency motor.
- Super wide and super thick main beam with double THK silent rails.
Inquire Now
Rich colors
8 colors
Maximum print width
1300mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 2255mm
- Width : 993mm
- Height : 1539mm
- Weight : 250kg
Standard components
- Ordinary collection and discharge system
- Automatic moisturizing and cleaning system
- External automatic control air heat dryer
- Ink level alarm system
Work environment
- Temperature: 40 – 100 ° C
- Humidity: 20% – 80%
Print resolution / Speed / dpi
- 4 pass: 12m²/h (360×1200dpi)
- 6 pass: 10m²/h (720×1200dpi)
- 8 pass: 8m²/h (720×1200dpi)
RIP software
- Maintop
- Flexi
Power / Voltage
- 2500W AC220V+/-5%, 16A, 50/60 HZ
Accessories
- USB cable
- Media clamp
- Manual
- Drian bottle
- Ink cartridge
- RIP software
- Etc.
Print head
- Model ：I3200-A1
- Ink Type : Aqueous ink
- Size(width x depth x height)(mm) : 69.1×59.4×35.6
- Weight : 82g
- Nozzle Numbers : 3200
- Nozzle Row : 8 rows
- Nozzle pitch/nozzle row : 1/300 inch
- Max color/head : 4 colors
- Nozzle Resolution : 300 npi / 1 row 600npi / 2 row
- Effective printing width (mm) : 338 mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release : 6 pl at 43.2 kHz
- 3 gray release : 6.3, 12.3 pl at 21.6 kHz
- 4 gray release : 3.8, 5.5, 8.7 pl at 21.6 kHz / 3.8, 6.1, 9.4 pl at 21.6 kHz
- Viscosity range : 3-4 mP･a
Details

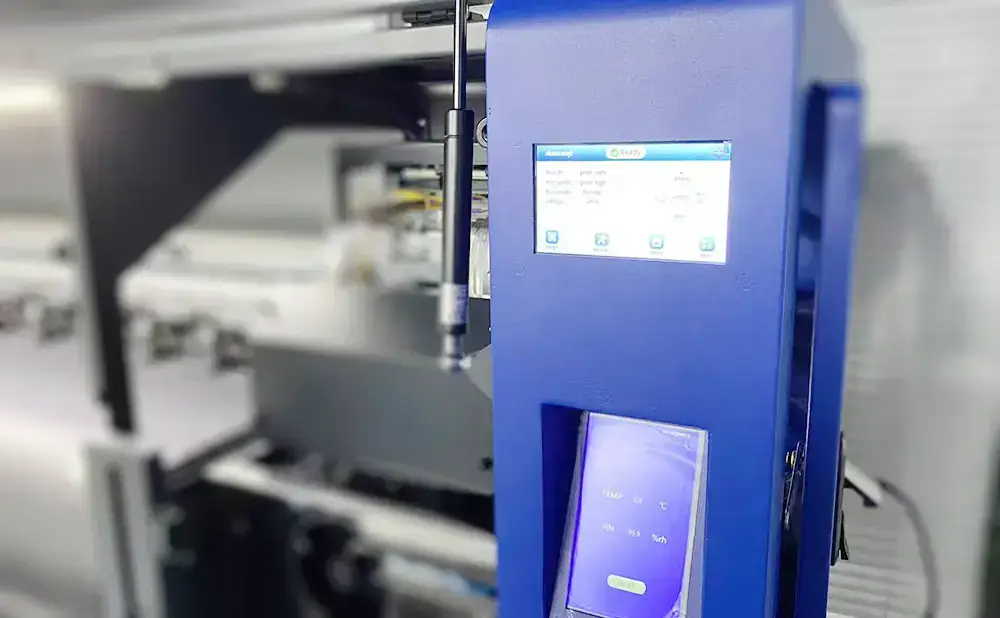

Smart Control Panel
The operation buttons are simple and clear, enabling technicians to operate and handle printing needs more easily, quickly, and efficiently.

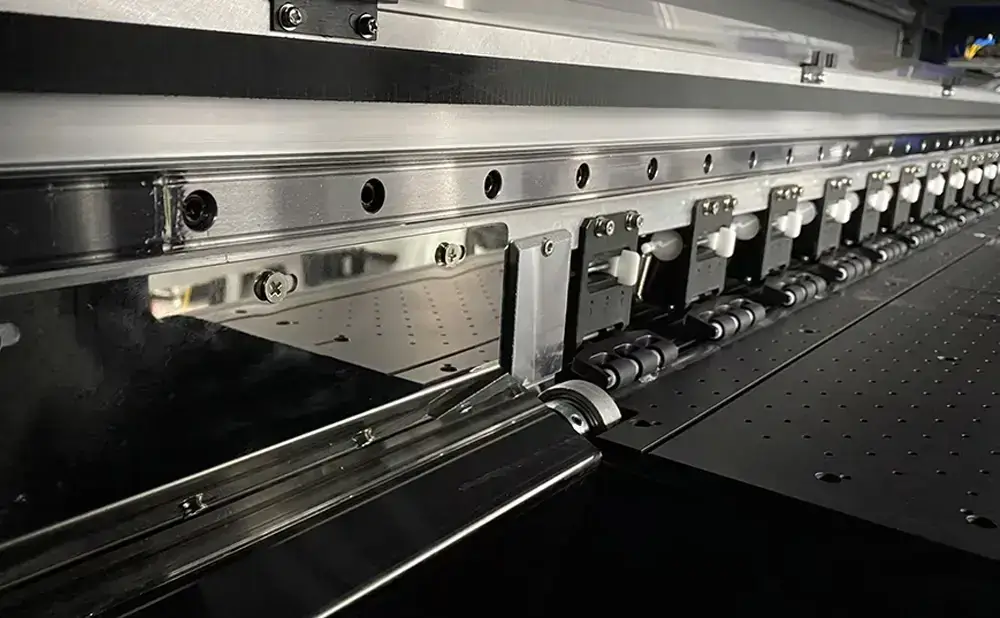

Dual THK silent rail
Double THK high-precision silent guide rail, stable and noise-free, long service life.
Dual heating and drying system
Double-layer infrared drying system for precise control of drying temperature and power regulation.
5L Bulk Ink Supply System
220Cc auxiliary ink cartridge + 5L large-capacity ink supply system, continuous and stable ink supply to ensure high-speed printing.
Sublimation paper
Fast dry sublimation Paper
Super fast dry sublimation paper
A3 / A4 super sheet subli-paper
High tacky subli-paper
Grey dye sublimation paper
AW art watercolor subli-paper
Sublimation ink
Sub low concentration ink
Sub normal concentration ink
Sub high concentration ink
