In the field of stainless steel processing, the iteration of surface graphic processing technology has always centered around “precision, efficiency, and expressiveness”. Laser printing etching and UV printing, as mainstream technical approaches, differ significantly in principles and effects. Equipment represented by Keditec UV printers is reshaping the industrial pattern of stainless steel printing with their technical advantages.
- Tech Path Duel: Core Differences Between Laser Etching and UV Printing
The core of laser printing and etching lies in “physical modification” — a high-energy laser beam, after being focused and controlled by a galvanometer, precisely acts on the surface of stainless steel. Through instantaneous high temperatures, it melts or vaporizes the material, ultimately forming metal-colored marks of varying depths. This technology excels at producing high-precision identifiers, such as numbers on stainless steel curtain walls and simple patterns on railings. However, due to the limitations of its physical mechanism, it has always been unable to break through the bottleneck of a single color.
Keditec UV printing follows the “chemical curing + inkjet imaging” route and is an advanced form of inkjet technology. Its working logic is clear: piezoelectric ceramics drive the printhead to accurately eject UV ink containing photocurable resin onto the stainless steel surface. Subsequently, the device’s built-in 365-405nm ultraviolet lamp set is activated immediately, which can trigger the polymerization reaction of the photoinitiator in the ink within 0.3 seconds, curing the liquid ink into a solid film layer. This “instant drying upon ejection” feature not only makes the graphics and texts firmly adhere to the stainless steel surface but also breaks through material limitations, enabling compatible printing on multiple media.
- Color Revolution: The Absolute Advantages of UV Printing
The color expression of laser etching has always been confined to the “metal natural color range”. It can only present light and dark changes through the depth of the etch marks, and is only suitable for functional identification scenarios where there are no requirements for colors.
The Keditec UV printer has completely revolutionized this situation. Its dedicated UV ink boasts an ultra-wide color gamut and high fidelity. Whether it’s saturated solid colors or delicate gradients, it can accurately reproduce the details of the design draft, creating visually rich effects on stainless steel surfaces. What’s more crucial is its unique fluorescent color printing capability — for special scenarios such as traffic warning signs and industrial hazardous area indicators, the UV color patterns can quickly penetrate light interference in dim environments, significantly improving the efficiency of safety warnings. This has become the core competitiveness of Keditec equipment in niche markets.
- Keditec UV Printer: Disassembly of the Technical Core
The efficient operation of equipment depends on the coordination of core components
- Sprinkler : It adopts the imported Epson i3200u1 print head, which can precisely control the size of ink droplets and the jet trajectory, laying the foundation for micro-level precision printing;
- Ink Supply and Curing System : Special UV inks are continuously supplied through ink cartridges. After being jetted, they are instantly cured by ultraviolet lamps, preventing ink droplet diffusion. Meanwhile, the formed film layer has both wear resistance and corrosion resistance;
- Transmission system : High-precision guide rails drive the printing platform to move smoothly, ensuring that the spray head operates in an orderly manner according to the preset path, and realizes continuous printing of large-sized stainless steel plates.
- Case Evidence : The Industrial Value of Technology Implementation

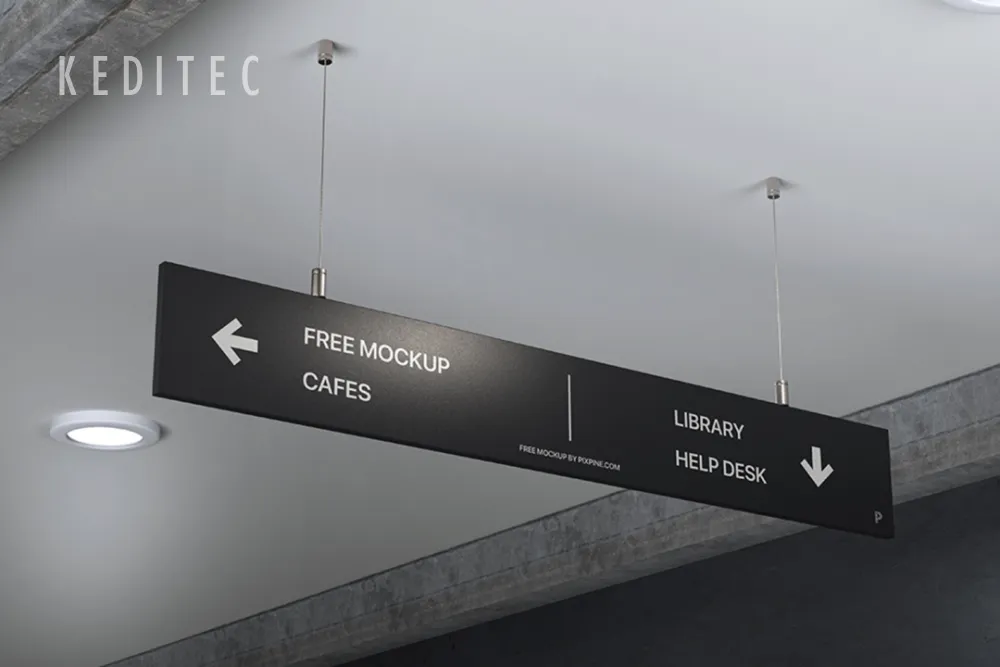

Case 1: Upgrade of Shopping Mall Wayfinding System
In the stainless steel signage project of a large complex, the Keditec UV printer took on the core printing task. The fluorescent guide arrows and bright icons incorporated by the designers remained eye-catching under the complex lighting conditions of the shopping mall after being printed by the equipment, increasing customers’ wayfinding efficiency by 40%. Moreover, the cured ink layer showed no fading or wear after a one-year outdoor test, reducing the later maintenance cost by 60%, which was highly recognized by the operation management.
From functional marking to high-end decoration, Keditec UV printers, with their technical features of “precision, rich colors, and durability”, have broken the traditional boundaries of stainless steel printing. They have promoted the upgrade of stainless steel processing from a single functional process to diversified creative applications, becoming a key driving force for industrial innovation.
