Keditec 1.3m ECO solvent printer
Keditec-1.3m ECO printer
Keditec-1.3m ECO printer has a maximum print width of 1.3m, which is very suitable for polyester fabrics such as clothing, clothing, soft signage, sportswear, flags, tents, blankets, curtains, etc.
Configuration
-
Product model : K 1 – 1.3m ECO
-
Print head : Epson i3200-E1(solvent -based ink)
-
Number of print heads : 1
-
Max print size : ≤1300mm
-
Printing resolution : Maximum 2400dpi
-
Ink colors : 4 Colors (CMYK)
-
Ink type : Keditec ECO ink
-
Max printing speed : 20 ㎡/h
-
Receiving system : Ordinary retractable material
-
Ink supply method : Siphon, positive pressure ink bag
-
Warranty : 12 months (Ink system, printheads and ink capping are not covered)
-
International Shipping : DHL,FedEx,By Air,By Sea
Key features
- Heating control panel, better control effect, convenient power adjustment.
- 220CC auxiliary ink cartridge + 5L large ink cartridge: stable ink supply system to ensure amazing printing speed.
- Wider bottom box structure: The right box supports the placement of computers.
- Controllable variable frequency motor.
- Super wide and super thick main beam with double THK silent rails.
- Control System: Printer Manager
Video
Rich colors
4 colors
Maximum print width
1300mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 1785mm
- Width : 286mm
- Height : 559mm
- Weigth : 80kg
Print resolution / Speed
- 4 pass: 20m²/h
- 6 pass: 10m²/h
- 8 pass: 5m²/h
Work environment
- Temperature : 40-100 ° C
- Humidity : 20%-80%
RIP software
- Flexi
- Maintop
- Riin
Power
- 220v for drawing
- 450v for front,middle and rear heading
Valtage
- 16A
- AC 100V ±10%
- AC 220V ±10%
- 50HZ ±1
- 60HZ ±1
Print head
- Model : I3200-A1
- Ink Types : Water-based ink
- Size(width x depth x height)(mm) : 69.1×59.4×35.6
- Weight : 82g
- Nozzle Numbers : 3200
- Nozzle Row : 8 rows
- Nozzle pitch/nozzle row : 1/300 inch
- Max color/head : 4 colors
- Nozzle Resolution : 300npi/1row 600npi/2row
- Effective printing width (mm) : 338mm
- Droplet volume (pl) and ejection frequency (kHZ):
- 2 grey release : 6 pl at 43.2 kHz
- 3 gray release : 6.3, 12.3 pl at 21.6 kHz
- 4 gray release : 3.8, 5.5, 8.7 pl at 21.6 kHz / 3.8, 6.1, 9.4 pl at 21.6 kHz
- Viscosity range: 3-4 mP･a
- Model : I3200-E1
- Ink Types : Solwent – based ink
- Size(width x depth x height)(mm) : 69.1×59.4×35.6
- Weight : 82g
- Nozzle Numbers : 3200
- Nozzle Row : 8 rows
- Nozzle pitch/nozzle row : 1/300 inch
- Max color/head : 4 colors
- Nozzle Resolution : 300npi/1row 600npi/2row
- Effective printing width (mm) : 338mm
- Droplet volume (pl) and ejection frequency (kHZ):
- 2 grey release : 6 pl at 43.2 kHz
- 3 gray release : 6.3, 12.3 pl at 21.6 kHz
- 4 gray release : 3.8, 5.5, 8.7 pl at 21.6 kHz / 3.8, 6.1, 9.4 pl at 21.6 kHz
- Viscosity range: 3-4 mP･a
Details
Smart Control Panel
The operation buttons are simple and clear, enabling technicians to operate and handle printing needs more easily, quickly, and efficiently.

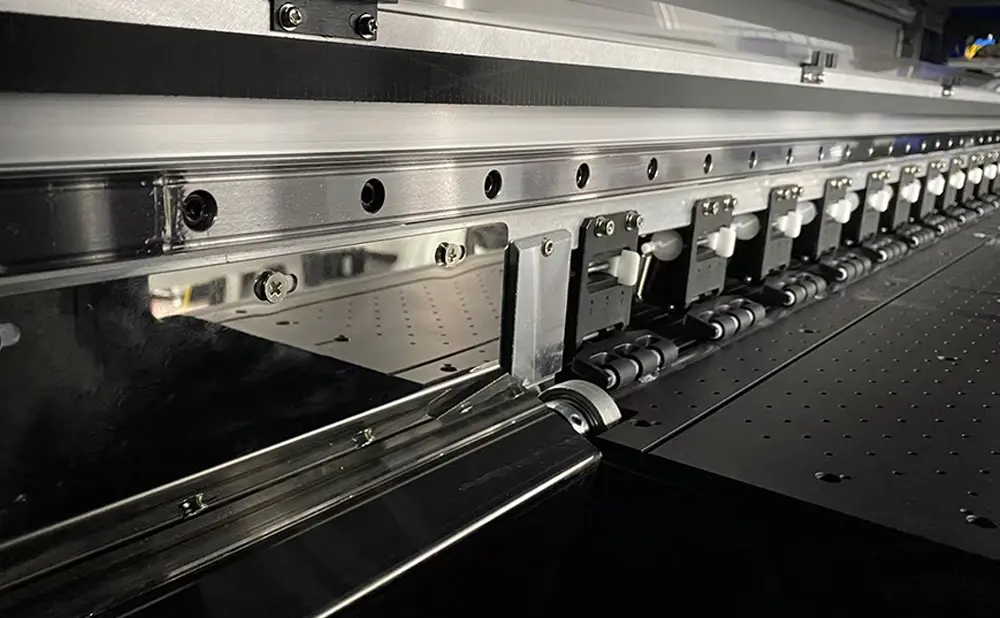

THK silent rail
THK high-precision silent guide rail, stable and noise-free, long service life.
Dual heating and drying system
Double-layer infrared drying system for precise control of drying temperature and power regulation.
Ink Supply System
Continuous and stable ink supply to ensure high-speed printing.
Application
You may also need.
Keditec 1.6m ECO solvent printer
Keditec 1.8m ECO solvent printer
Keditec 3.2m ECO solvent printer
Documents
- The product brochureFile size : 3mb
FAQ
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
How is your quality control?
We have a professional quality control team that performs 100% testing before delivery.
How can I get a fast and accurate quote?
Please select the product you are interested in on our official website’s product page and leave your email address, mobile phone number, company name and information about various product specifications.
How can I order a machine from you?
After you confirm the order details, we will send you a pro forma invoice for confirmation. Upon receiving the payment, we will arrange production. We will inform you of the shipping method, and the final product will be dispatched within the agreed time.
Can we become the exclusive distributor of your machine?
We look forward to working closely with you. After you have ordered multiple machines and can provide high-quality after-sales service, we can start discussing the distribution relationship.
What is the warranty for your machines?
Our machines come with a one-year warranty excluding the print head. During the warranty period, we will send some replacement parts free of charge. Damaged parts should be returned promptly.
